Steve Spiers
Junior Member

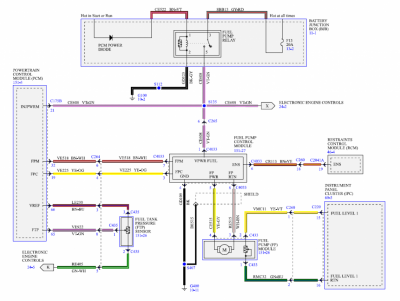

It seems that the fuel pump control module (FPCM) has an 8 wire plug. Power comes in from the fuse box via pin 1 and grounded at pin 4. Pins 3 and 7 go to the PCM - probably power to the module and ground, I'm guessing. Pins 5 and 8 are the output power and ground. Pin 6 is restraints control.
![upload_2023-6-14_19-18-16.png upload_2023-6-14_19-18-16.png](https://www.s197forum.com/data/attachments/64/64139-f1f52166e59e85cccdad3088b48bcdc4.jpg)
I've installed the 2014 5.0l engine in my early Mustang, but due to the 6R80 transmission, I'm trying to use a factory wiring harness. I tried to bypass the FPCM and get fuel in the rail, but no injector action. I hooked up the FPCM, but I have no air bags or module. The ignition system checks out, so I just can't get the fuel pressure with the FPCM as is, and can't get the injectors to click without it. The FPCM is new from Ford and the pump is a Walbro.
Does anyone know what the pinout voltages are for an FPCM? Specifically, the restraints control module?
