Airlift tank and compressor mounting

Discussion in '2005+ Mustang GT 4.6L Tech' started by Time2SHO, May 7, 2017.

  1. jas2234

    jas2234 forum member

    Posts:
    332
    Likes Received:
    8
    Joined:
    Jul 16, 2010
    Location:
    Somerset, PA
    Thanks. I used an angle grinder to cut them off then I took my orbital sander and cleaned up the remaining weld. After that I used 320 grit on the orbital to clean up all the original brushed marks on the whole tank. I spent probably an hour polishing the tank.

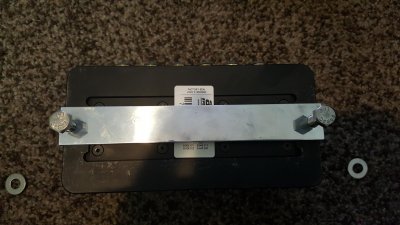

    I would really like to center the manifold above the tank but the oval cutouts on the rear deck are to small. I might try to make a bracket so I can "pinch" the rear deck between the manifold and bracket.

  2. jas2234

    jas2234 forum member

    Posts:
    332
    Likes Received:
    8
    Joined:
    Jul 16, 2010
    Location:
    Somerset, PA

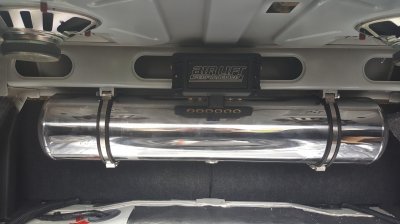

    Well made a bracket to pinch the deck between the manifold and bracket. Now everything is centered. Anyone have a pic of where they mounted the compressor? Being on the road all week sucks I never have time to work on the car. Sorry TIME2SHO I didn't mean to Jack your thread.


    Attached Files:

  3. 93kingcobra

    93kingcobra Junior Member

    Posts:
    2
    Likes Received:
    0
    Joined:
    Sep 19, 2014
    Jas,

    Just order my airlift this week and looking for ideas on my install and saw your pic's. The tank and management install came out great to you have any finished picture of the compressor install?

    Thanks

  4. jas2234

    jas2234 forum member

    Posts:
    332
    Likes Received:
    8
    Joined:
    Jul 16, 2010
    Location:
    Somerset, PA
    20170604_140933.jpg 20170604_140925.jpg Here are a couple of final install pics. Hope this helps. I still have almost full use of my trunk and was able to keep my spare tire also.

  5. 06JET

    06JET forum member

    Posts:
    307
    Likes Received:
    10
    Joined:
    Mar 16, 2016
    Location:
    West Bend WI
    Nice install jas2234. I like my install but now I like yours better. Dang it.....Now I may have to change my compressor location. My compressor is under the tank to the right side. It just barely fit but like you it frees up all my trunk space. Great Job.

  6. jas2234

    jas2234 forum member

    Posts:
    332
    Likes Received:
    8
    Joined:
    Jul 16, 2010
    Location:
    Somerset, PA
    Thanks. I looked all over for different ways to mount everything cause I still wanted full use of my trunk and to keep my spare. I trimmed the carpet under the compressor for a clean look. I ran the wires and hose up the wheel well to hide everything. I did have to buy an 18" hose to extend the one on the compressor to the tank.

  7. Scott

    Scott Senior Member

    Posts:
    2,285
    Likes Received:
    10
    Joined:
    Nov 17, 2009
    Location:
    King City, Ontario, Canada
    Josh hope you are still monitoring this thread, I just placed my order for the same 6" mount. By any chance do you have pictures for reference of this: "Also marks where new holes need to be drilled. The new mounting bolts will need to be counter sunk to clear the strap mount bolts." Any information you can provide would be greatly appreciated.

  8. jas2234

    jas2234 forum member

    Posts:
    332
    Likes Received:
    8
    Joined:
    Jul 16, 2010
    Location:
    Somerset, PA
    Here is where I cut and marked for new holes. Plus sent you a pm


    Scott likes this.
  9. jas2234

    jas2234 forum member

    Posts:
    332
    Likes Received:
    8
    Joined:
    Jul 16, 2010
    Location:
    Somerset, PA
    Yes the new bolts will need to be countersunk. The straps are directly above. I used 1/4-20 stainless. As for where to mount I just measured so the tank was centered and the mounts are between the oval cutouts on the rear deck. If you need anything just let me know.

    Scott likes this.
  10. Scott

    Scott Senior Member

    Posts:
    2,285
    Likes Received:
    10
    Joined:
    Nov 17, 2009
    Location:
    King City, Ontario, Canada
    Thanks Josh this helps. Old eagle eye did not notice the marks in the earlier pictures you made for the holes. The 6" mounts do not ship until April 23, maybe by then the ice will have melted as we have had 2 days of freezing rain, ice pelts and snow. When will spring come! Thanks again!
