Show Us What You Got!

With an increasing number of Mustang enthusiasts mounting APEX wheels on their vehicles, and wider 18" and 19" Mustang wheels in development, we wanted to create a thread where the community could collectively share photos, fitment information, and any feedback on the wheels in one centralized location. Feel free to just post up pictures, and if you don't mind, please also include the following since many tire sizes are not a direct fitment, and members would like to know the specifics of how to achieve the same fit/look:

  • Wheel Model, Color, Size & Offset
  • Front and Rear Tire sizes, Tire Make & Model
  • Suspension Modifications, Camber Plates or camber bolts
  • Any required alignment settings such as added negative camber
  • Any other required modification (Spacers, Fender Rolling, Trimming etc.)

Let's Kick Things Off!

We will kick things off with Josh's personal track machine from Trinity Autosport. Josh has ran our EC-7 18x10 square fitment for some time now, and has killed off countless sets of 275 and 285 tires at So Cal tracks in the process :headbang: His current setup is listed below:

2015 S550 Mustang GT 5.0 - Performance Pack

  • APEX Wheels: EC-7 in Race Silver
  • Front: 18x10” ET43 EC-7 with 305/35-18 NT01
  • Rear: 18x10” ET43 EC-7 with 305/35-18 NT01
  • Spacers: 15mm up front with extended stud kit (for strut clearance)
  • Suspension: Swift lowering springs
  • Camber: F: -2.5 degrees, R: -1.8 degrees







Still Can't Find The Right Picture? Check Out Our Flickr Account For More Content!

Last edited:

TGR96

el blanco nino
Joined
Feb 15, 2011
Posts
10,353
Reaction score
26
Location
Huntsville, AL
Great looking set up! I can't believe that's a 35 aspect ratio! That's a lot of tire all around. I suppose that the 15mm spacer up front is to clear the PP Brembos? Or is there interference with the strut body?


ApexRaceParts

forum member
Joined
May 1, 2014
Posts
535
Reaction score
28
Great looking set up! I can't believe that's a 35 aspect ratio! That's a lot of tire all around. I suppose that the 15mm spacer up front is to clear the PP Brembos? Or is there interference with the strut body?

Much appreciated! All of our 18" EC-7 Mustang wheels have massive brake clearance, and clear the S550 factory Performance Package Brembo's without any spacers required. They also clear the common S197 GT500 Brembo's as well :clap:

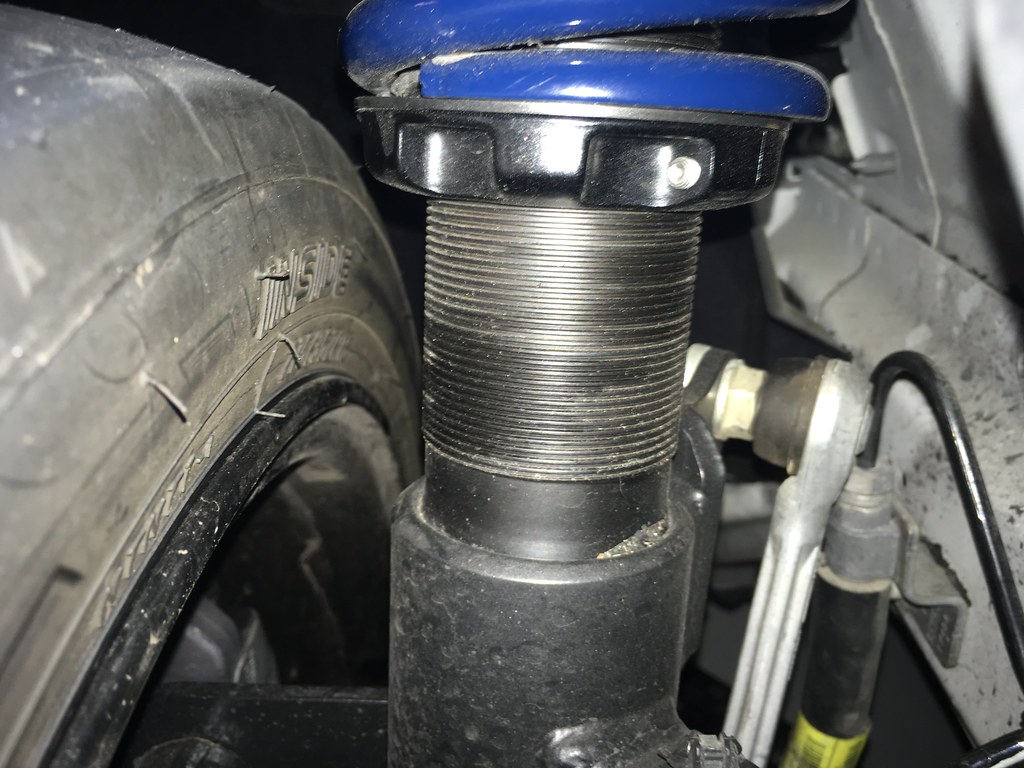

With that said, spacers may be used up front for inner strut clearance depending on the suspension type, and tire brand and size used. Many 275 and 285 tires can be a direct fit, while 295 and 305 tires will certainly require spacers. Below is an interior shot of the tire to suspension clearance. This is a 305/35-18 NT01 with 15mm spacers and the S550 is equipped with Ridetech coilovers.



Makes me want to find a puddle and steal the pic idea.

Lol, thank you sir. My marketing associate was a bit weary of my photography skills (and rightfully so) as he could not attend the shoot, but I think they came out alright :smiley-face-popcorn

- Ryan

Last edited:

ApexRaceParts

forum member
Joined
May 1, 2014
Posts
535
Reaction score
28
2015 S550 Mustang GT 5.0 - Performance Pack

  • APEX Wheels: EC-7 in Anthracite
  • Front: 18x10” ET43 EC-7 with 305/35-18 NT01
  • Rear: 18x10” ET43 EC-7 with 305/35-18 NT01
  • Spacers: 15mm up front with extended stud kit (for strut clearance)
  • Suspension: Ridetech Coilovers












ApexRaceParts

forum member
Joined
May 1, 2014
Posts
535
Reaction score
28
2011 S197 Mustang GT 5.0

APEX Wheels: EC-7 in Race Silver
Front & Rear: 18x10” ET43 EC-7 with 275/35-18 Nitto NT05
Suspension: KW Clubsport Coilovers
Brakes: StopTech Trophy BBK



ApexRaceParts

forum member
Joined
May 1, 2014
Posts
535
Reaction score
28
2016 Mustang GT350

  • APEX EC-7 Satin Black
  • Front & Rear: 19x10" ET40 - 275/35-19 RE-71R
  • Stock suspension



We cant wait to start playing with wider 19" EC7's on the GT350 platform :cool:

Last edited:

ApexRaceParts

forum member
Joined
May 1, 2014
Posts
535
Reaction score
28
Same fitment as above on this GT350, however this is our Race Silver finish :D

2016 Mustang GT350
  • APEX EC-7 Race Silver
  • Front & Rear: 19x10" ET40 - 275/35-19 RE-71R
  • Stock suspension



ApexRaceParts

forum member
Joined
May 1, 2014
Posts
535
Reaction score
28

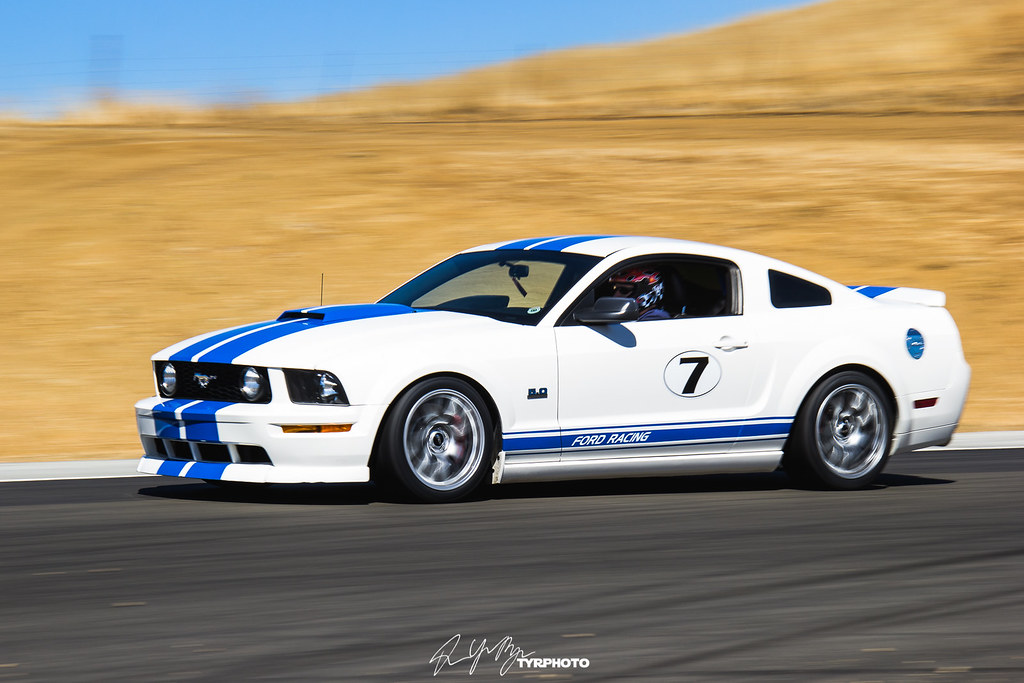

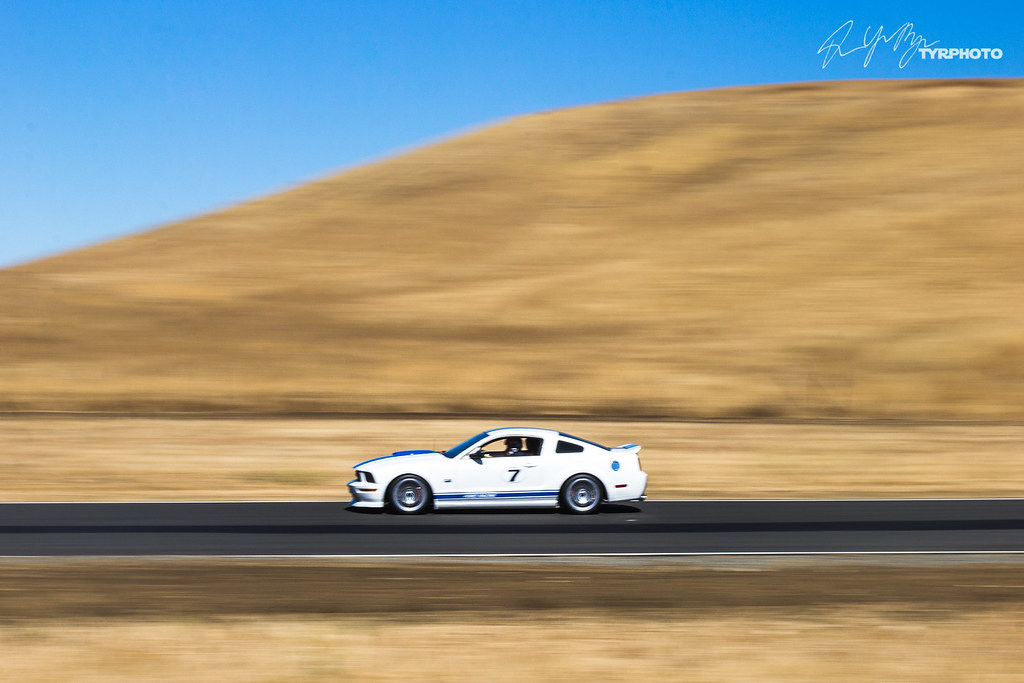

Action shots of this S197.

APEX EC-7 Race Silver
Front & Rear: 18x10" ET43 - 275/40-18








- Ryan

Last edited:

CammedS197

forum member
Joined
Sep 12, 2015
Posts
580
Reaction score
33
Location
Palm Bay, FL
Absolutely stunning. I need these!

Well when I have the cash lol. But wow fantastic looking product! Weights and price?


Speedboosted

Found missing cylinders
Joined
Oct 24, 2014
Posts
948
Reaction score
6
Location
PNW
Looks like a set of 18x10 EC-7 in Race Silver is in my future, good lawd those are beautiful. Reminds me of the BBS wheel without the price tag.

By the way, Sal's car isn't a GT500


ApexRaceParts

forum member
Joined
May 1, 2014
Posts
535
Reaction score
28
Absolutely stunning. I need these!

Well when I have the cash lol. But wow fantastic looking product! Weights and price?

Looks like a set of 18x10 EC-7 in Race Silver is in my future, good lawd those are beautiful. Reminds me of the BBS wheel without the price tag.

By the way, Sal's car isn't a GT500

Much appreciated gents! Good call @speedboosted, Sal's car always fools me at first glance. :insane:

The EC-7 18x10's are approx. 22 lbs each, and you can find more information here.

- Ryan

Last edited:

ApexRaceParts

forum member
Joined
May 1, 2014
Posts
535
Reaction score
28

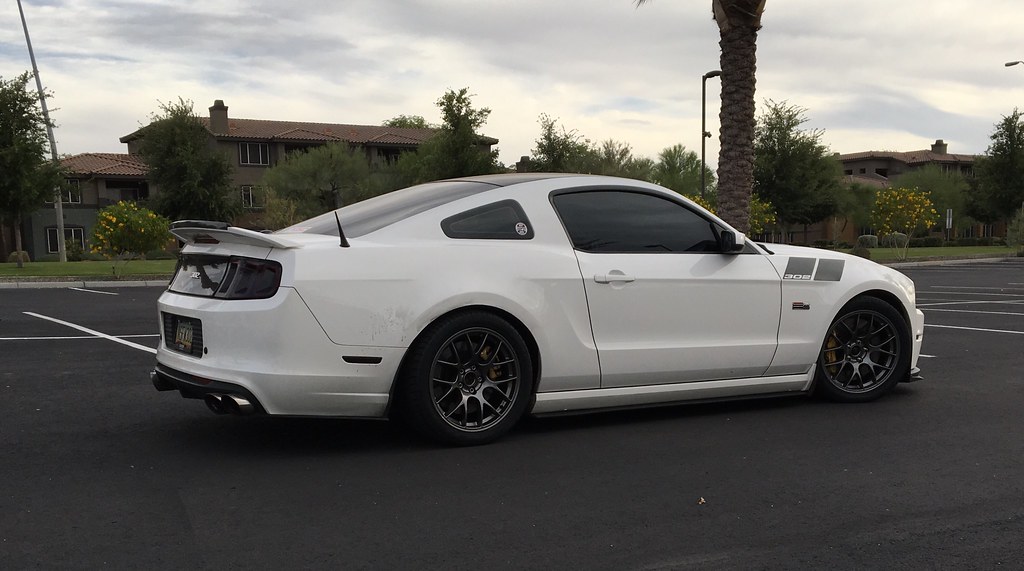

We are excited to have the 18x10” ET43 EC-7 wheels for Mustang BACK IN STOCK! A fellow enthusiast Kevin shared some photos of his White S197 Mustang 5.0 with his newly mounted EC-7’s. Kevin replaced his 20” wheels for this lightweight track setup and next on his list is to slightly raise the ride height.

  • APEX Wheels: 18x10” ET43 EC-7 in Anthracite (square)
  • Tires: 285/35/18 Toyo T1 Sport Tires
  • Suspension: ST XTA Coilovers, Cortex Watts Link & Whiteline Front Sway/Lower Control Arms
  • Brakes: The front and rears are off a 13/14 GT500. 15" rotor in the front with the 6P Brembo brakes. Rears are 13.8" rotors with a CNC caliper relocation bracket.






Last edited:

ApexRaceParts

forum member
Joined
May 1, 2014
Posts
535
Reaction score
28
I'm dying to get some of the new APEX 18x11" EC-7's in the mix here, those of you with pre-orders on the first batch are likely just as eager :insane:

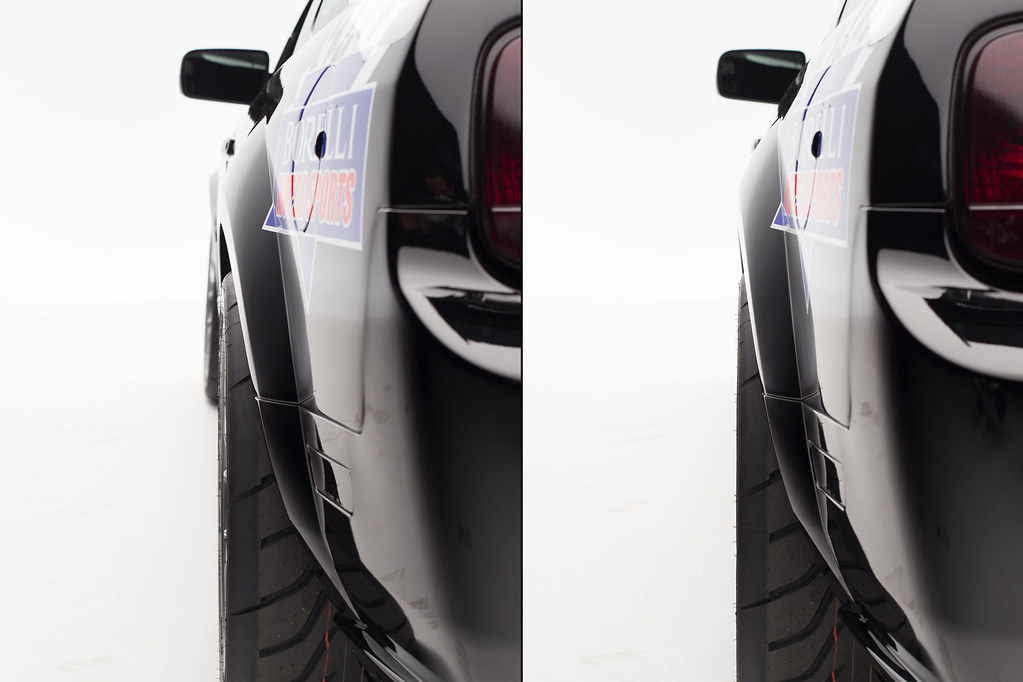

Here is Borelli Motorsports S197 race car in the mean time.

  • APEX Wheels: EC-7 in Anthracite
  • Front & Rear: 18x10” ET43 wrapped in Toyo R888
  • Suspension: Coilovers and other goodies
  • Camber: Track/Race alignment











Rasmus

forum member
Joined
Feb 9, 2009
Posts
2,295
Reaction score
26
Can I just throw out a big thumbs-up to Apex wheels?

We took my neighbor's 2016 M3 with only a tune and Apex wheels to the drag strip, and ran an 11.3 second quarter. Then we took the same car to VIR and ran a 2:12 around Full course. Awesome car, awesome wheels.


.....now, why no Corvette wheels? The price on OEM C5Z wheels has gone up dramatically. It's getting stupid.


ApexRaceParts

forum member
Joined
May 1, 2014
Posts
535
Reaction score
28
Can I just throw out a big thumbs-up to Apex wheels?

We took my neighbor's 2016 M3 with only a tune and Apex wheels to the drag strip, and ran an 11.3 second quarter. Then we took the same car to VIR and ran a 2:12 around Full course. Awesome car, awesome wheels.


.....now, why no Corvette wheels? The price on OEM C5Z wheels has gone up dramatically. It's getting stupid.

Killer! Thanks so much for the post, and funny you mention Vette wheels. Camaro and Vette are the two platforms we are tackling next so stay tuned :clap:


ApexRaceParts

forum member
Joined
May 1, 2014
Posts
535
Reaction score
28
18x11" EC-7's have officially hit the shelves, and shipments have gone out to the first wave of enthusiasts. I don't know about you guys, but I'm eager to see some mounted shots :eek: I know we've got some Boss 302 guys taking delivery of these 11's.

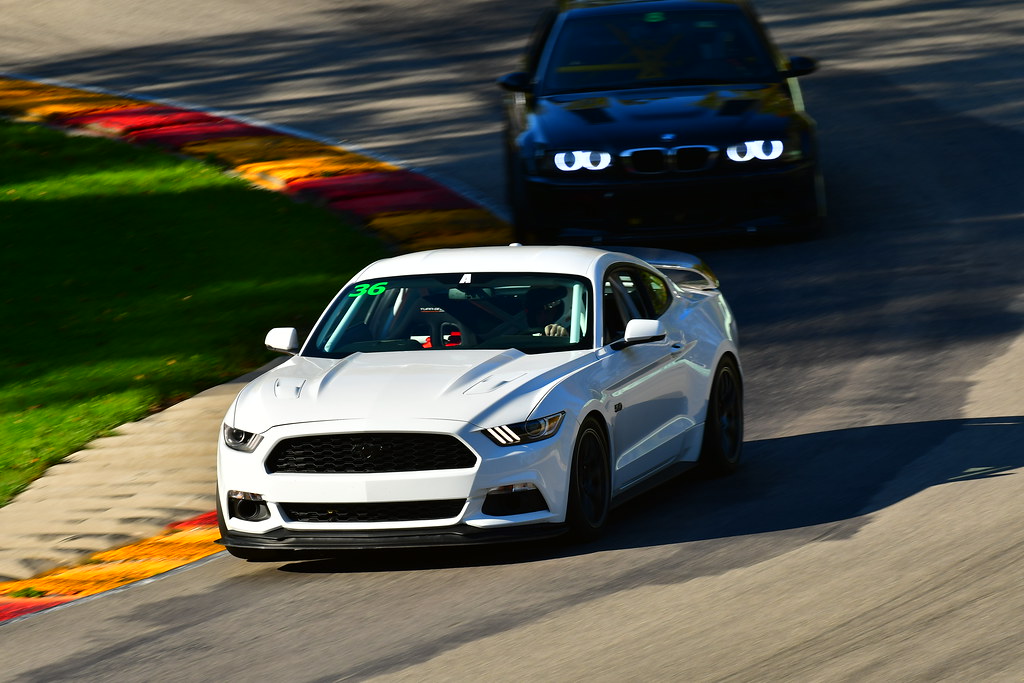

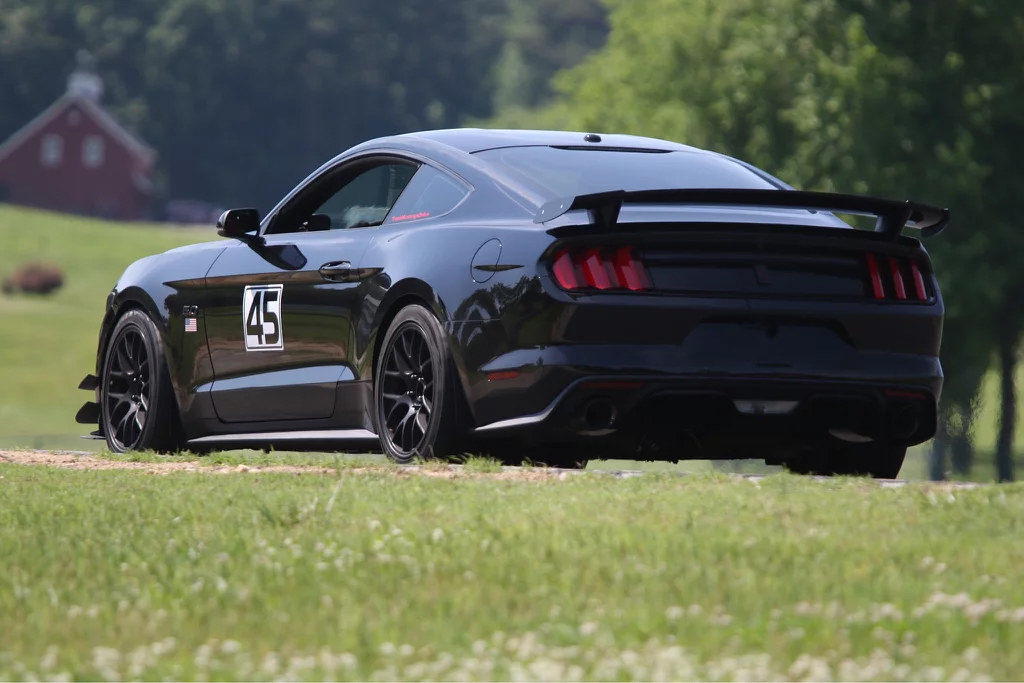

In the mean time lets keep this thread rolling with some familiar shots from gtorpedo over on Track Mustangs Online. We are loving this S550 weekend warrior!

Wheels: APEX EC-7 18x10" ET43 Satin Black
Tires: 275/40-18 Bridgestone RE-11
Suspension: Ridetech Coilovers







ApexRaceParts

forum member
Joined
May 1, 2014
Posts
535
Reaction score
28

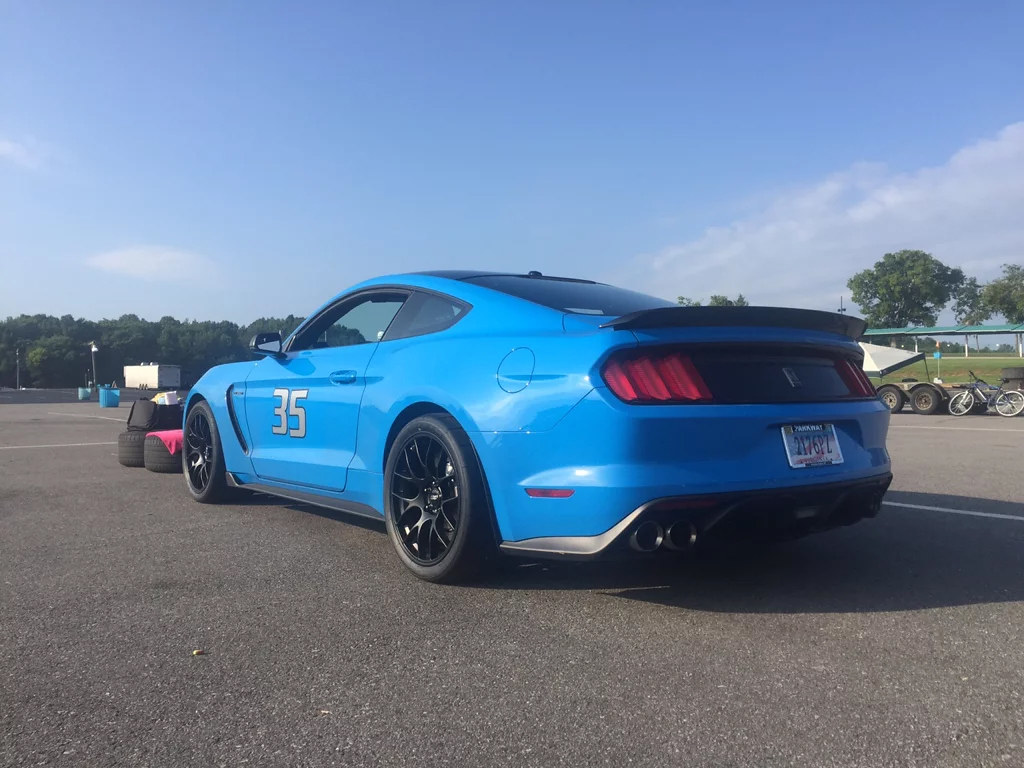

Grabber Blue GT350 with Satin Black 19" EC-7 ready to roll at the track. These wheels provide ample clearance for the massive calipers.

Square setup:
19x11" ET52 APEX EC-7 Satin Black
305/30/19 Nitto NT01 Tires
Extended ARP Studs
25mm spacer up front for inner strut clearance



ApexRaceParts

forum member
Joined
May 1, 2014
Posts
535
Reaction score
28

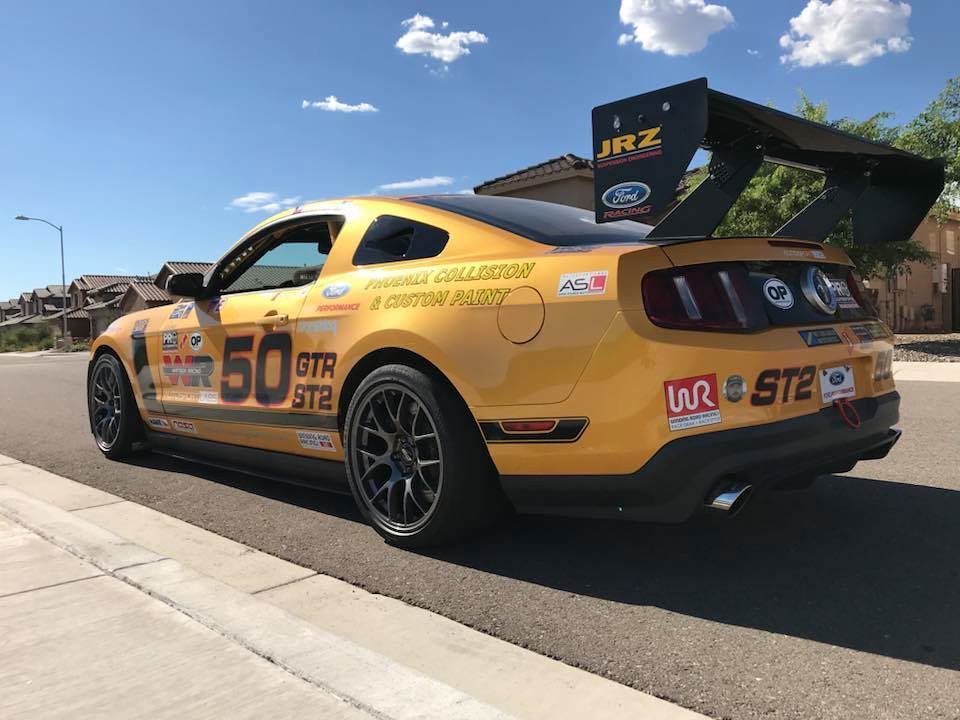

S197 Mustang Race Car - All Business

Wheel Specs: APEX EC-7 18x11" ET52 in Anthracite on all 4 corners
Tires: 295/35/18 Hoosier R7 (switching to 315 soon)
Optimum Performance Spacers: F: 20mm (for strut clearance) / R: 6.25mm
Camber: 3.1* F /2.9* R
Suspension: JRZ Raceline 1132 Coilovers











Follow at FTWynne Motorsports on Facebook

Last edited:

ApexRaceParts

forum member
Joined
May 1, 2014
Posts
535
Reaction score
28
KENNY BROWN SERIALIZED GT4 CS BOSS 302






Wheels, Tires & Hardware
APEX 19×10″ ET40 EC-7 square in Anthracite
Bridgestone RE-71R 285/35-19 square
Extended Stud Kit
12.5mm spacers up front (not necessary for clearance)

Kenny Starts with the Chassis Support
Jacking Rail
Matrix Brace

The Rear Grip Kit Provides the “Bite” for the Rear
Comp Aluminum Lower Control Arms
Anti-Squat Rear Traction Brackets
U-link Rear Upper Control Arms
GT4 Rear Roll Center Relocation Kit w/Aluminum Panhard Bar

Dampers
Kenny Brown Spec, JRZ RS1 Coilover Kit With Specific Coilover Main Springs.

Front Suspension
Kenny Brown GT4 Tubular K Member
Kenny Brown Front Control Arms
Caster Plates
3 Way Adjustable front Sway Bar
Sway Bar End links
Bumpsteer/Tie Rod Ends

Power Upgrades
JLT Cold Air Kit with Tune
Bassani Exhaust
Triple Pass Radiator with High speed Fan.
Oil Separators

Brakes
Kenny Brown/Baer Pro 4R Brakes
Rear Eradispeed Rotors
Stainless Steel Brake lines
Hawk Pads
Kenny Brown Brake Duct Kit

Drivetrain
MGW Shifter

Personal Protection
4 Point Roll Cage
Rear Seat Delete
Quick Clips Harness Attachment
4 Point ASM Harnesses
Fire Extinguisher
