S197 308 boss pushrod turbo swap

Discussion in 'Hardcore Tech=*MOTOR SWAPS*' started by tubbedstangeater, Aug 14, 2014.

  1. tubbedstangeater

    tubbedstangeater forum member

    Posts:
    141
    Likes Received:
    0
    Joined:
    Dec 17, 2013
    I was suggested to post my build in this area. First off this forum is great!!

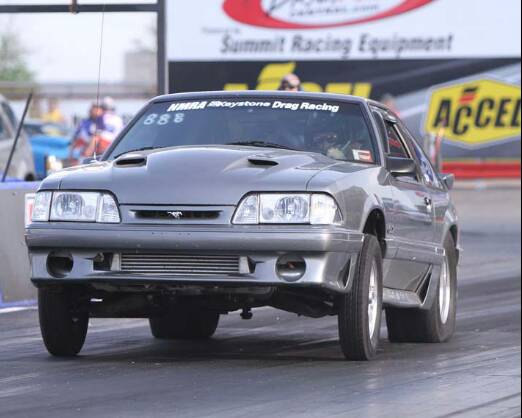

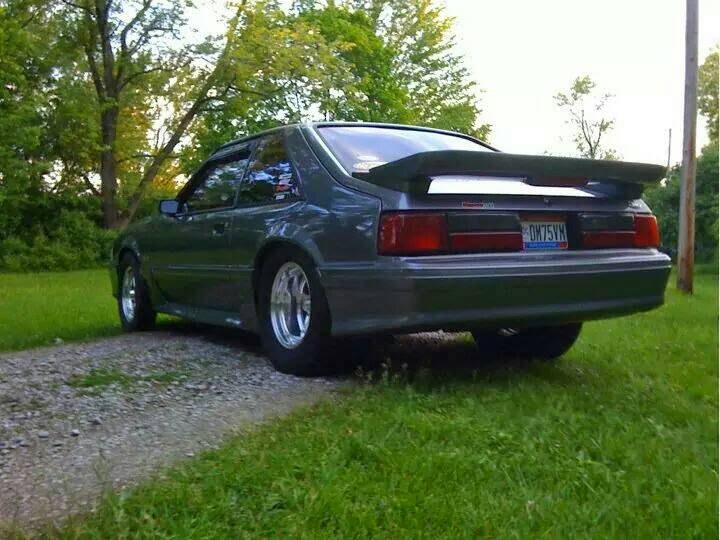

    What started my journey was the purchase of an 06 gt that i eventually fell in love with.I found myself driving it more than my 91 gt. The 91 mustang setup I had went 9's and is extremely fast but lacked street manors.[​IMG][​IMG]
    The gas milage was 18 mpg with a 3.27 gear and a c4 transmission. Not bad!! The chassis was stiff and it rode like crap. At the time of the build I was young and dumb and cut, tied frames and installed cages with a later addition of a minitub.

    I started looking at the 197 body styles in 2010 and noticed the wheel well lips we're already rolled and the axles are 31 spline right off the rip . I Also noticed the sub frames on the s 197 were much better than the previous years.

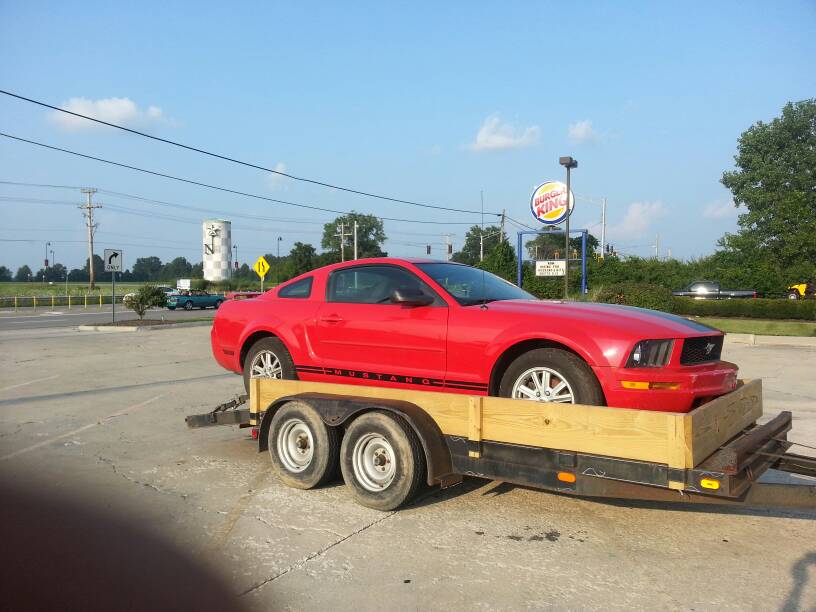

    I kicked the thought around about a chassis change for awhile. Then one day a water surveyor seen the 91 in the garage and said if i ever wanted to sell it call him. He followed up numerous times. So here I am torn that I love one vehicle but the other I love the power. I threw the idea around if I could buy a s197 used and cheap enough I would try to do a swap . Well that thought turn into reality when I seen a 2000.00 dollar 2005 coupe on Craigslist for sale. It had 85 thousand miles on it with a blown v6.

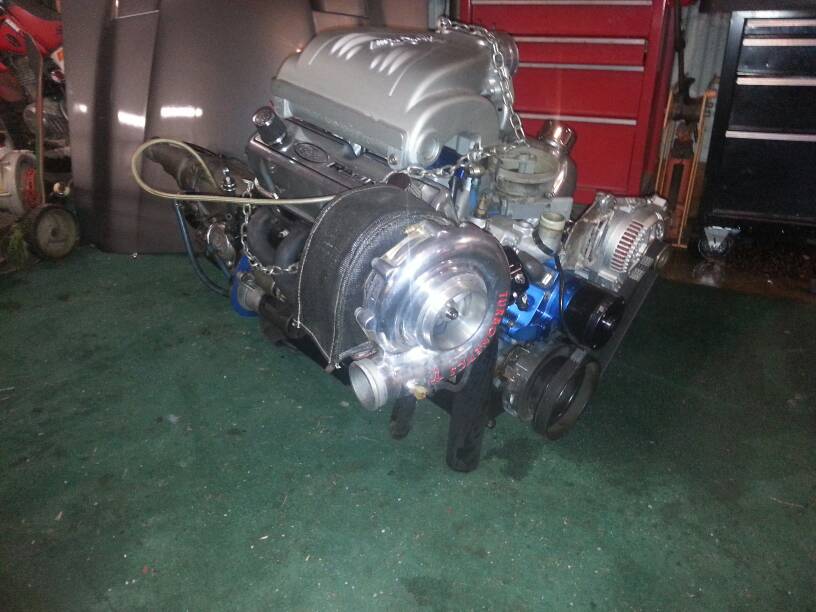

    Specs are of the 91 : 308 boss forged, world windsor sr heads. Trick flow r , 60 lb fast injectors, c4 trans 3500 stall, holley hp efi setup, custom turbo setup that was proven 9.7s on 17psi, e camshaft, 80 mm accufab throttle body, holley dominator pump 12-1800 pump[​IMG][​IMG][​IMG][​IMG]

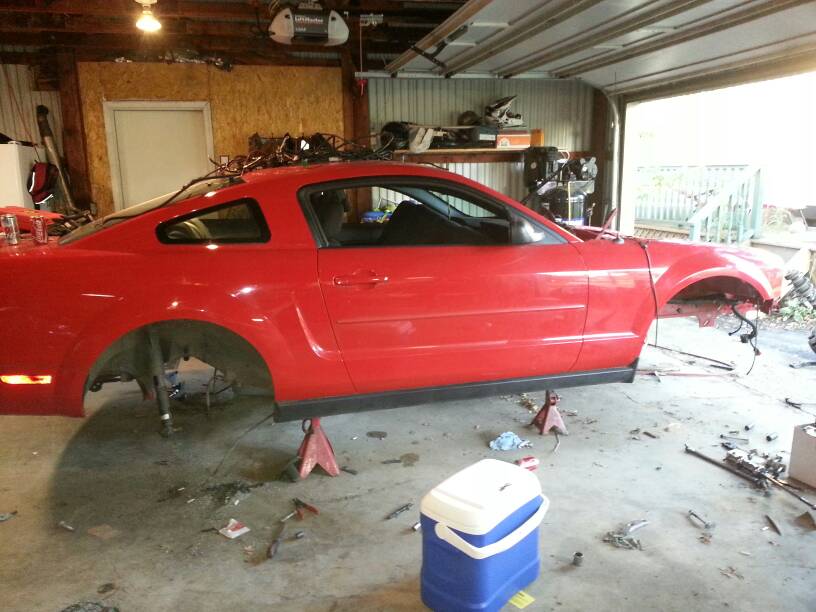

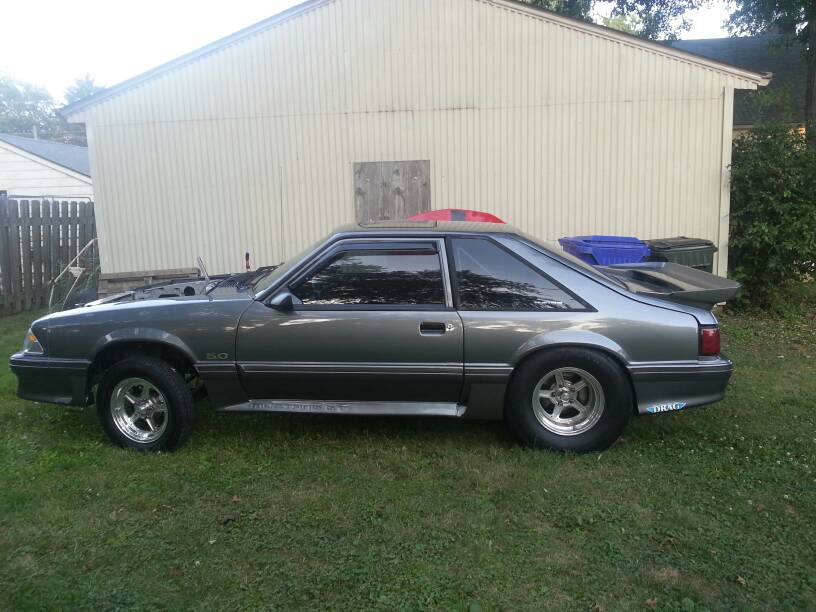

    so far I stripped the 91 and sold the chassis. [​IMG][​IMG]

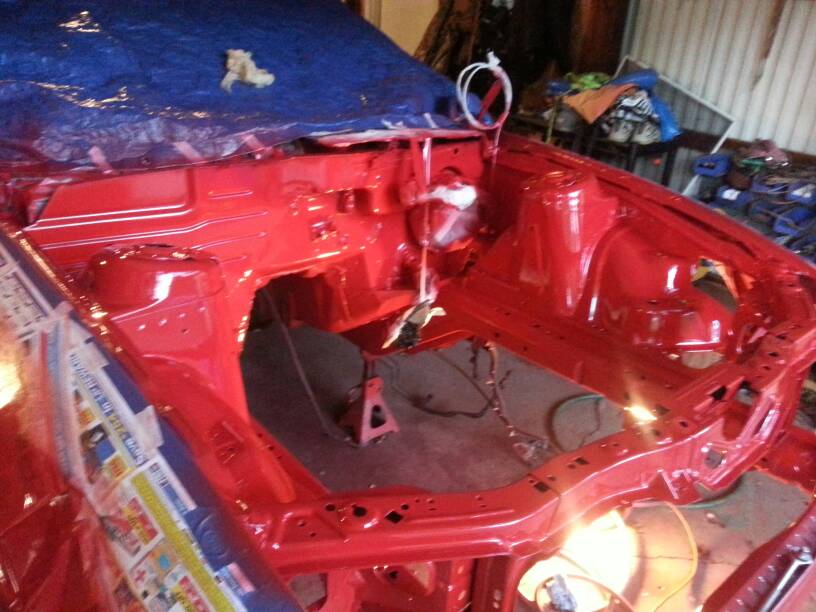

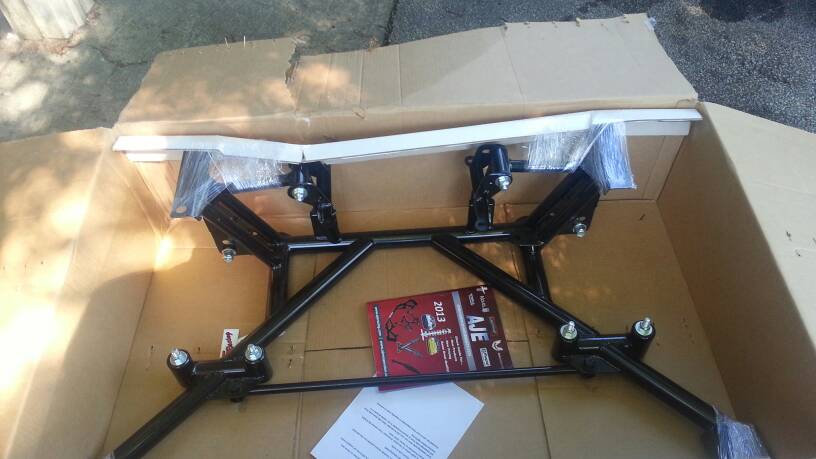

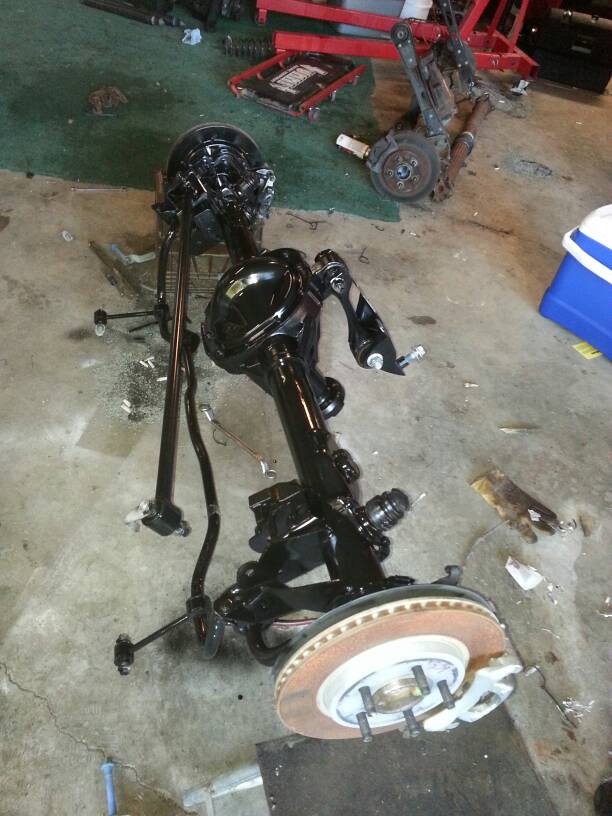

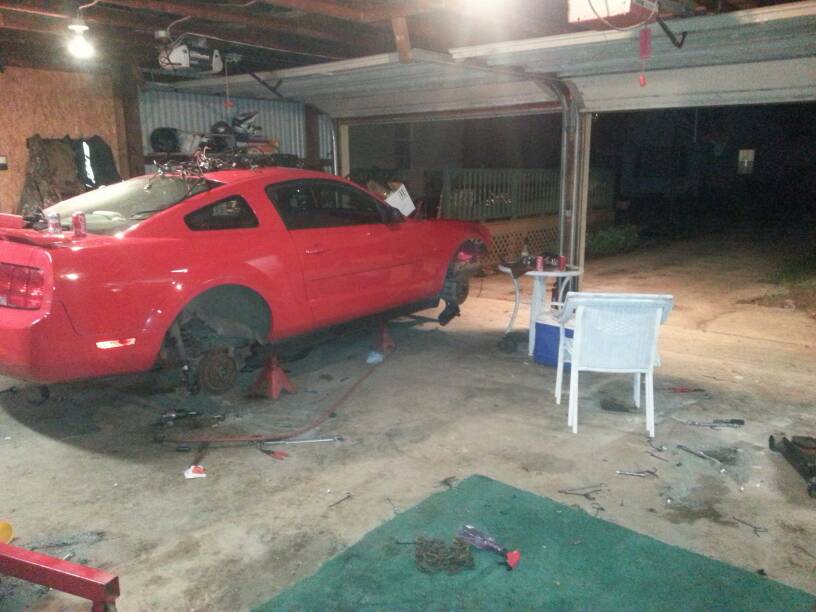

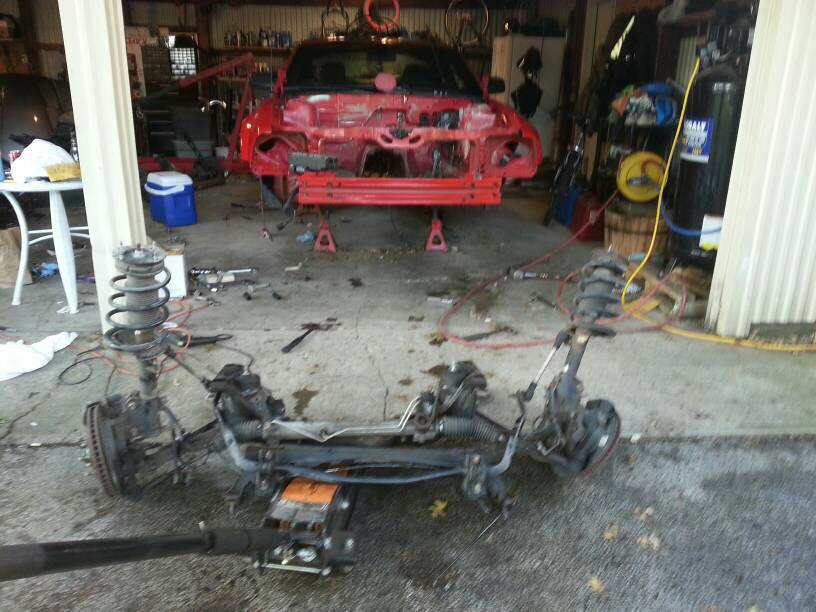

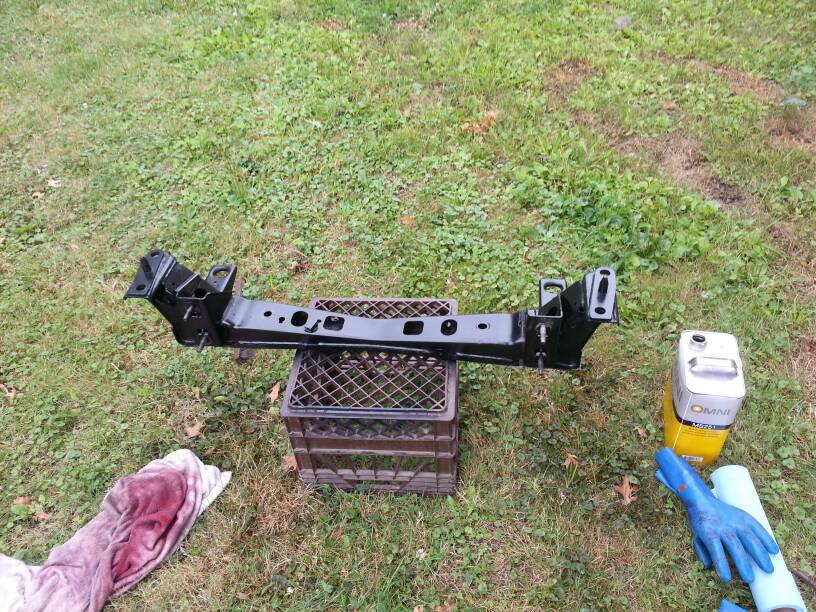

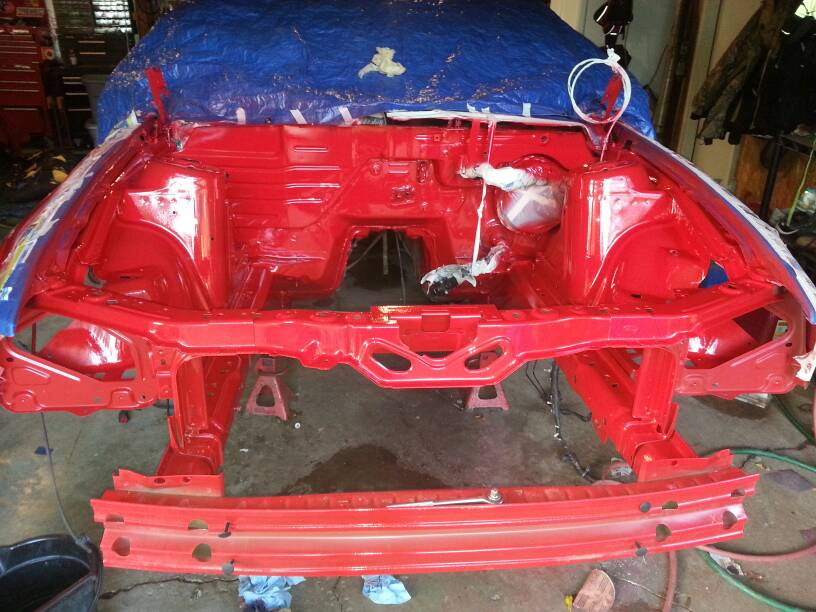

    And also got the 05 stripped for a aje k member and a 2011 gt rearend install. Soon followed the engine bay prep to throw a quick coat of ppg red over it. [​IMG][​IMG][​IMG]
    This weekend I'm hoping for paint and to have the engine in the cradle to get driveshaft dimensions finalized.

    Last edited: Aug 15, 2014
  2. weather man

    weather man Persistance Is A Bitch

    Posts:
    13,068
    Likes Received:
    5
    Joined:
    Mar 3, 2012
    Location:
    MN
    Sweet! Good luck!

  3. Wicked GT

    Wicked GT OCD with ADD...

    Age:
    48
    Posts:
    7,487
    Likes Received:
    1
    Joined:
    Apr 24, 2011
    Location:
    Omaha, NE
    Nice, looks like a cool build!

  4. tubbedstangeater

    tubbedstangeater forum member

    Posts:
    141
    Likes Received:
    0
    Joined:
    Dec 17, 2013
    [​IMG]

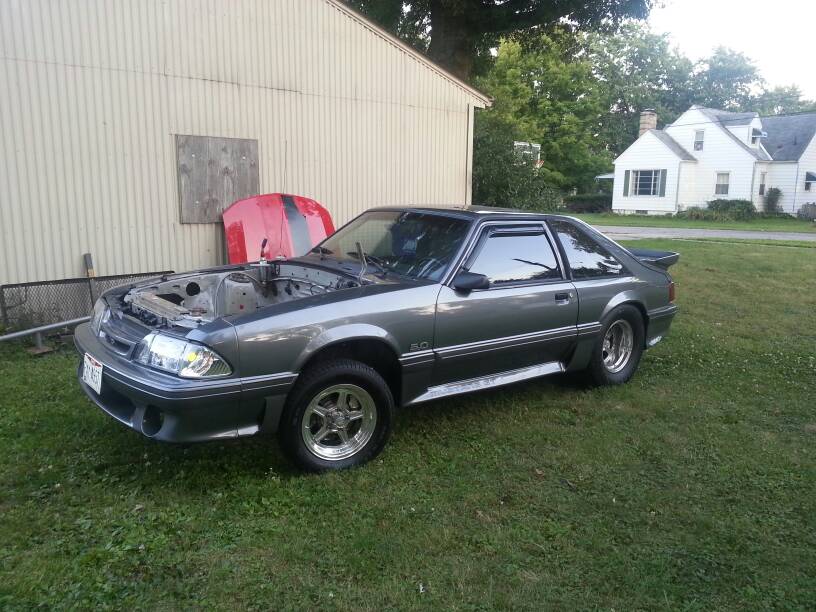

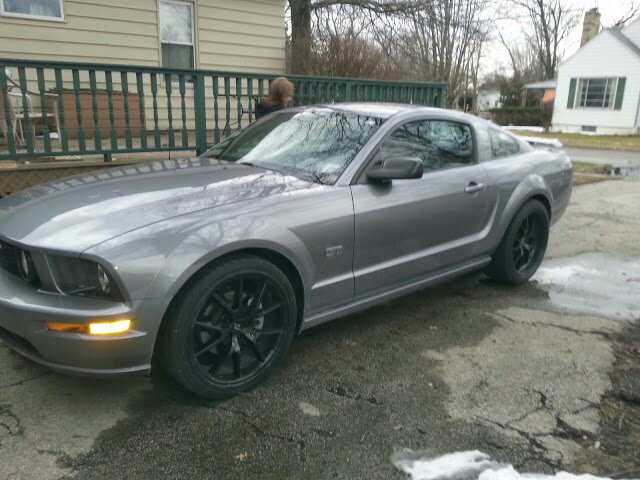

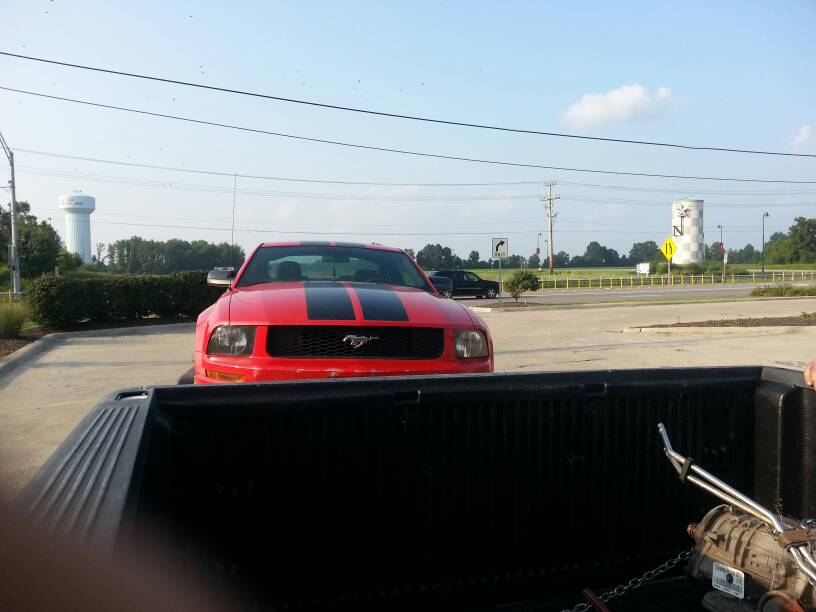

    This car is what caused my swap and started it all.

  5. jsimmonstx

    jsimmonstx forum member

    Posts:
    580
    Likes Received:
    0
    Joined:
    May 11, 2012
    Location:
    Comal County, TX
    Cool, but you gotta work on your message formatting.

  6. tubbedstangeater

    tubbedstangeater forum member

    Posts:
    141
    Likes Received:
    0
    Joined:
    Dec 17, 2013
    [​IMG][​IMG][​IMG][​IMG]

  7. K_Brogoitti

    K_Brogoitti forum member

    Posts:
    498
    Likes Received:
    0
    Joined:
    May 8, 2012
    Location:
    Columbia Basin
    Subbed for shizzell. I would have loved to buy that 91 chassis however. Too bad you sold it

  8. WOT

    WOT forum member

    Posts:
    319
    Likes Received:
    0
    Joined:
    Jul 23, 2010
    Location:
    South Florida
    Sweet build, would like to see what the car weighs after the swap.

  9. tubbedstangeater

    tubbedstangeater forum member

    Posts:
    141
    Likes Received:
    0
    Joined:
    Dec 17, 2013
    I had the 91 for 18 yrs. Needed to switch it up.plus it was gonna need a new paint job coming up. Not interested in that. New body just needs a bumper sprayed.

    Last edited: Aug 15, 2014
  10. dream07

    dream07 forum member

    Posts:
    443
    Likes Received:
    1
    Joined:
    Jan 25, 2011
    Location:
    Eastern PA
    Great build, except I really wish you had welded those rear axle tubes before you painted it. With the power you are making and high stall convertor, all you need is sticky tires and you will probably lose it.

  11. tubbedstangeater

    tubbedstangeater forum member

    Posts:
    141
    Likes Received:
    0
    Joined:
    Dec 17, 2013
    I'm gonna run drag radials. I will eventually weld it. From what I'm reading a jig is the appropriate thing to do if welded. I can have that done in the winter.

  12. tubbedstangeater

    tubbedstangeater forum member

    Posts:
    141
    Likes Received:
    0
    Joined:
    Dec 17, 2013
    [​IMG][​IMG]

  13. K_Brogoitti

    K_Brogoitti forum member

    Posts:
    498
    Likes Received:
    0
    Joined:
    May 8, 2012
    Location:
    Columbia Basin
    Two thumbs up buddy that looks good!

  14. tubbedstangeater

    tubbedstangeater forum member

    Posts:
    141
    Likes Received:
    0
    Joined:
    Dec 17, 2013

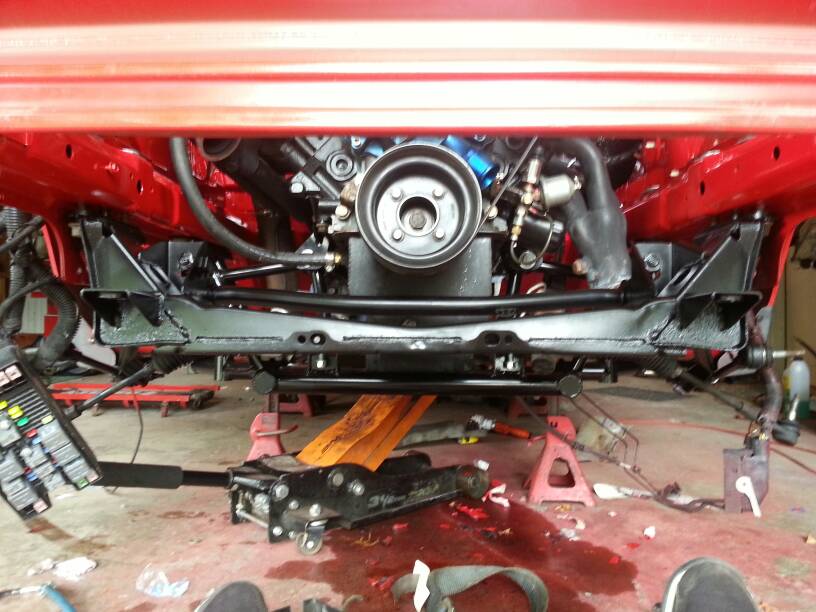

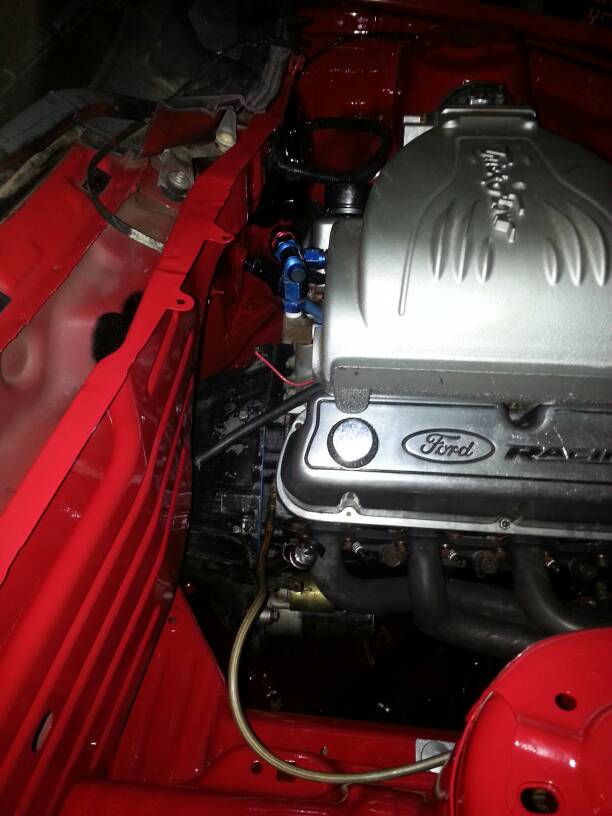

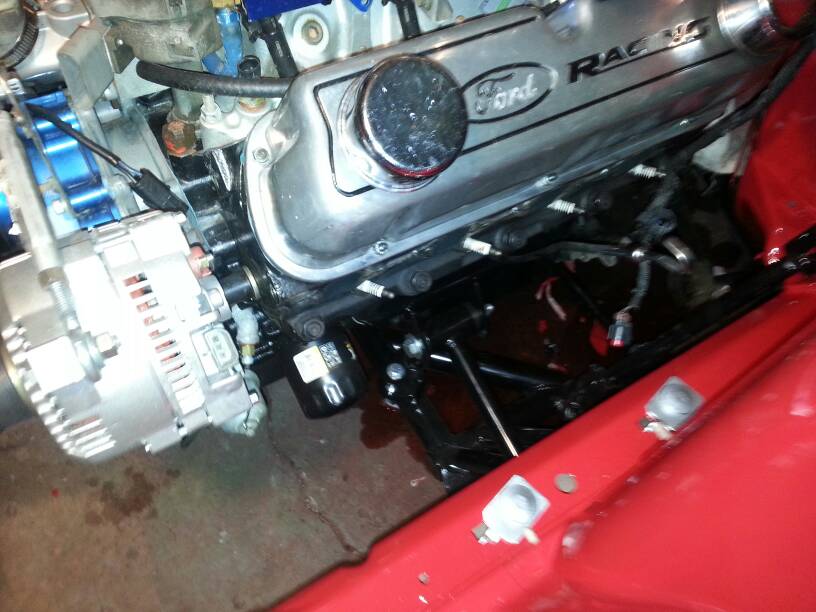

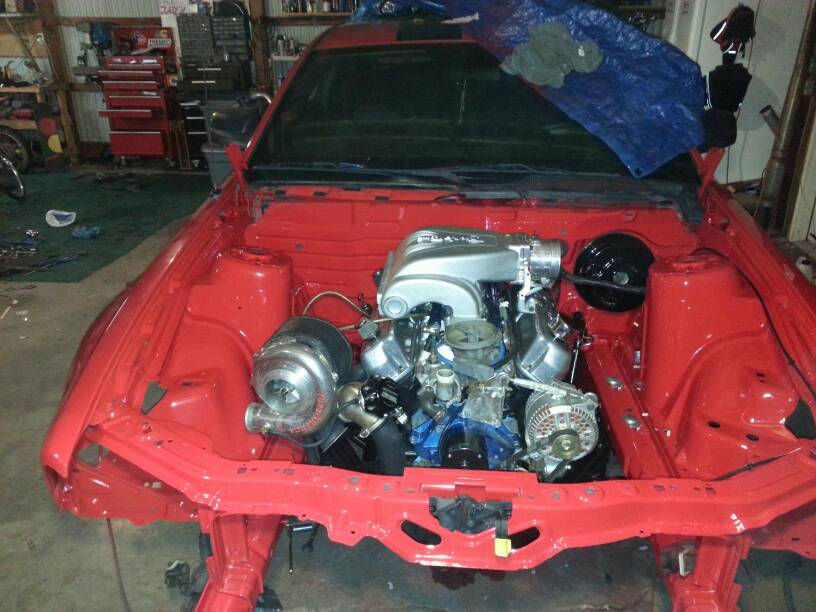

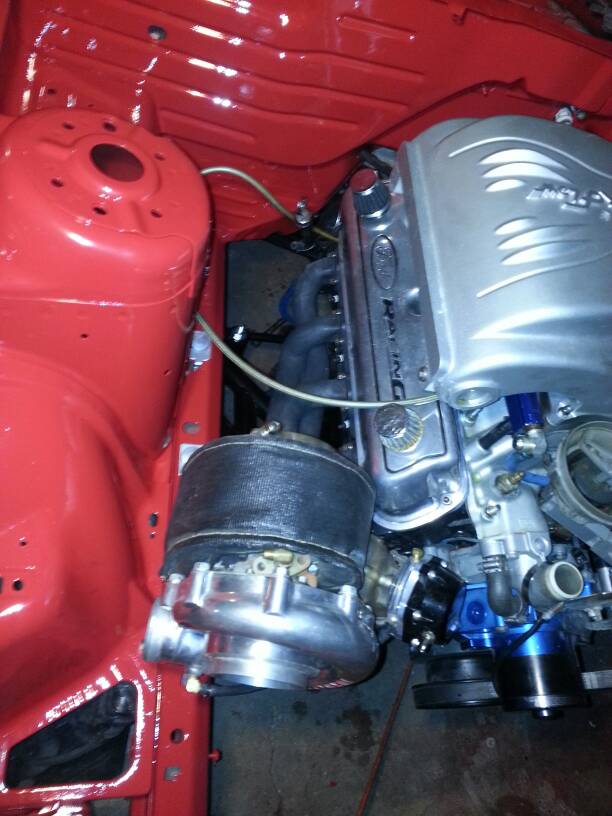

    Lots of space for hands . I love it as I get older.[​IMG][​IMG][​IMG][​IMG]

  15. joeymustang

    joeymustang forum member

    Posts:
    564
    Likes Received:
    0
    Joined:
    Feb 7, 2011
    Location:
    Houston, TX
    This is exactly what I wish to be able to do one day...not on my car but on a v6 donor lol...great work!

  16. tubbedstangeater

    tubbedstangeater forum member

    Posts:
    141
    Likes Received:
    0
    Joined:
    Dec 17, 2013
    I get to put 5.0 badges on it .Lmao

  17. jsimmonstx

    jsimmonstx forum member

    Posts:
    580
    Likes Received:
    0
    Joined:
    May 11, 2012
    Location:
    Comal County, TX
    I'm going to be interested to see how you resolve the proximity of the turbo to the pass-side frame, but looks good so far.

  18. claudermilk

    claudermilk forum member

    Posts:
    1,840
    Likes Received:
    0
    Joined:
    Jul 12, 2012
    Location:
    SoCal
    Looks good. That pushrod looks tiny in the huge S197 engine bay.

  19. tubbedstangeater

    tubbedstangeater forum member

    Posts:
    141
    Likes Received:
    0
    Joined:
    Dec 17, 2013
    The turbo plumbing won't be an issue. I always find some trick up my sleeve. Last day off today then work.

  20. tubbedstangeater

    tubbedstangeater forum member

    Posts:
    141
    Likes Received:
    0
    Joined:
    Dec 17, 2013
    [​IMG][​IMG][​IMG]
    Radiator and overflow fit perfect with slight mods.
