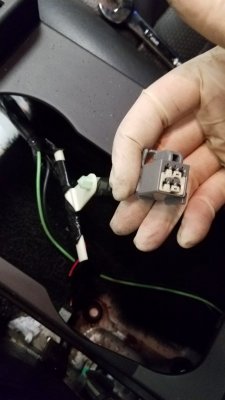

Hey all ! So I just installed my new Barton short throw today, and when I removed my center console I noticed this plug. Anyone know what it goes to ? It is a 06' GT premium with mycolor and the shaker500 system.



[stkjock]

Auto trans shifter most likely



[golkhl]

Might be the connector for the optional ambiant lighting.



[Speedboosted]

I believe it's the lighting plug for the auto shifter base. Powers up the P R N D 3 2 1



[redfirepearlgt]

It is definitely the auto selector connection for the 5R55 option. I used that to provide the (dimmable) cluster lighting and 12vdc to my dash mounted triple gauge setup on the 2005.

C307 is the connector name in the prints.



[07gts197]

Might be the connector for the optional ambiant lighting.

That wasnt an option until 08, it would be nice if it was though. I would buy the new console and it would be plug and play.



[Nick93]

ahh okay that makes sense, thanks guys ! definitely wish my 06 came with the ambient lighting though

It is definitely the auto selector connection for the 5R55 option. I used that to provide the (dimmable) cluster lighting and 12vdc to my dash mounted triple gauge setup on the 2005.

C307 is the connector name in the prints.

thats a good idea ! i can use that to wire up some ambient lights. do you by chance remember which wires on the connector you tapped into ?



[redfirepearlgt]

ahh okay that makes sense, thanks guys ! definitely wish my 06 came with the ambient lighting though


thats a good idea ! i can use that to wire up some ambient lights. do you by chance remember which wires on the connector you tapped into ?

That was 8 years ago. I had the paper tech manuals with wire schems I went by then. Going by the on line schems violet w/gray is for the light cluster on the dimmer (pin 4), and ground is black w yellow (pin 1).
