Possibly looking to part ways with my 2009 Bullitt Mustang. It doesn't look like much but that was pretty much the entire idea behind the car.

The car is fitted with a production Ironblock 5.4L V8 engine from a 07-2009 Shelby GT500. This car has been tastefully modified completely inside and out using nothing but quality parts. Every part added to the car has been cataloged as well for records. I will be supplying the new owner with all records as well as the Ford certificates and paperwork. Original window sticker, copy of invoice, both sets of keys, etc. are included with sale. I have an extensive Excel worksheet with all parts descriptions/pricing and part numbers, along with receipts cataloged by month/year they were purchased.

Internally the car is a GT500, everything from the PCM to the complete body harness is from a GT500. It’s just to the naked eye, the car is a complete sleeper and looks like a stock 2009 Bullitt and is registered as such.

The car has right around 24,500 miles on the chassis (as of 5/19/2015). The engine under 1500 miles on it (as of 5/19/2015). I bought it as a fully rebuilt 5.4L from BilletProShop. The engine runs very strong.

It is a 1-owner car and records are available for it. I bought the car in December 2009.

Vehicle Specifications

Engine
5.4L 4V GT500 Engine w/ 1.9L Eaton Roots Supercharger
2.5” BPS Pulley on a Gates Heavy Duty Belt
FRPP 65mm Polished Throttle Body
FRPP 113mm CAI
C&R Heat Exchanger w/ Roush Expanded Coolant Tank
2013 GT500 Fan Shroud
2010 GT500 Radiator
Reische 170* Thermostat
MRT O/R H Pipe and Borla Touring Mufflers. Sounds

The car is tuned by Lund Racing.

Transmission
TR6060 6-Speed Manual from a GT500
2012 GT500 Flywheel
2012 GT500 Slave Cylinder
2012 GT500 Clutch
MGW Short Throw Shifter with a custom ‘Hurst’ lever and knob
2013 GT500 OEM Carbon Fiber Driveshaft Retrofitted (Thanks Tob!)
BMR Driveshaft Loop
FRPP Stainless Steel Clutch Line
FRPP Rear Axle Differential Cover

Suspension
Koni Yellow Struts and Shocks
FRPP L Springs
Maximum Motorsports Adjustable Camber Plates
2011+ Mustang Swaybar Endlinks and Bolts
FRPP Front and Rear Sway Bars
BMR Billet Lower Control Arms and Relocation Brackets
BMR Adjustable Upper Control Arm and Mount
BMR Adjustable Panhard Bar and Mount
BMR K-Member
GT500 Front Lower Control Arms
GT500 Front Brembo Brakes
Stainless Steel Braided Brake Lines
Billet 7/8” Spacers on all corners
255/45/18 Continental Extreme Contact Tires on all corners - I planned on widening the rear wheels, but haven't gotten around to it. It's pretty swirly. lol

Various additional items have been added throughout the car too:

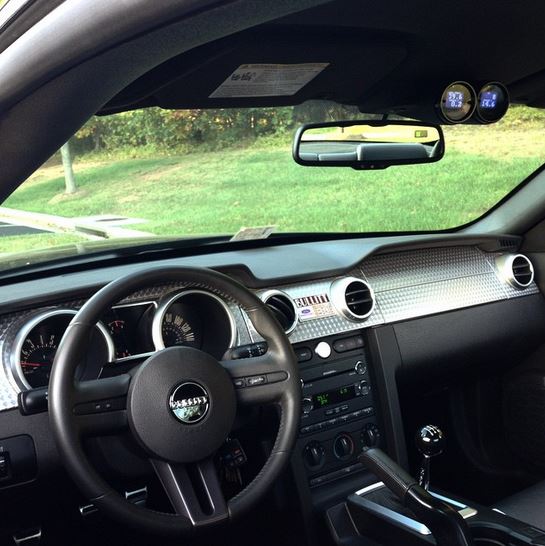

*Custom ‘zPod’ Overhead Gauge Pod that houses two Aeroforce OBDII Gauges (Wideband and Boost Sensors hooked up too)
*Entire car has been fitted with Dynamat Sound Deadening
*OEM HID Headlights have been fitted to the car and they are 100% functional
*Entire car has been repainted professionally using BASF paint and high-grade clear-coat which is much stronger than factory paint. The front antenna hole has been filled in, both washer nozzles and the rear sat antenna on the trunk. This was just done in Fall 2014.

Car has been in one accident – September 2012. It was a minor 1 car accident where I had to swerve around a stopped car and put the driver front wheel into a curb. Wheel, tire, lower control arm, strut and fender were all replaced.

A lot of work has been put into this car and we would like to see it go to a good home who will take care of her and most importantly... drive it!

Functionality wise, the car is perfect, and needs very little attention. However there are a couple odds and ends it needs:
*Boost MAP sensor isn’t working properly, but should be very simple fix.
*Pulley squeak during cold start and until car warms up. This started happening when I put the upper idler on.

Understand that this car is very far from factory specifications. There is no warranty or guarantees implied with the sale of the vehicle and for that purpose, it is sold “AS-IS”

I have a lot of money invested in this project but I'm prepared to move on. $35,495 - Financing is available.

Not interested in combating "I think it is worth X" or "You can buy a low mileage '09 GT500 for 33K" - If you are comparing a GT500 to this, than you've completely missed the point of this car. Just testing the market and seeing if anyone is interested. I'm in zero rush to sell, I don't have to sell, just seeing if someone wants to step up and become the next caretaker as I am looking at new possible projects.

The vehicle will be sold through our Ford dealership. Taxes, tags and fees are not included in price. Vehicle does not have cats therefore it will not pass emissions. But upon closer negotiations I can install cats so it can pass inspection (that is if your state/county requires emissions).

Thanks,

-Cam

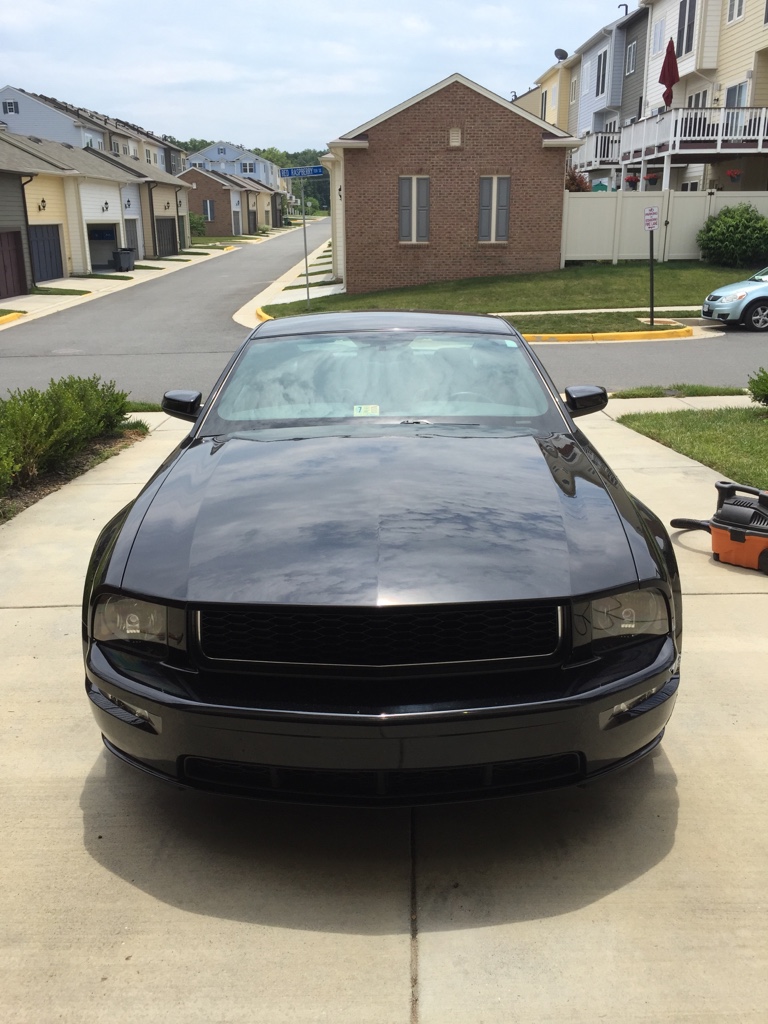

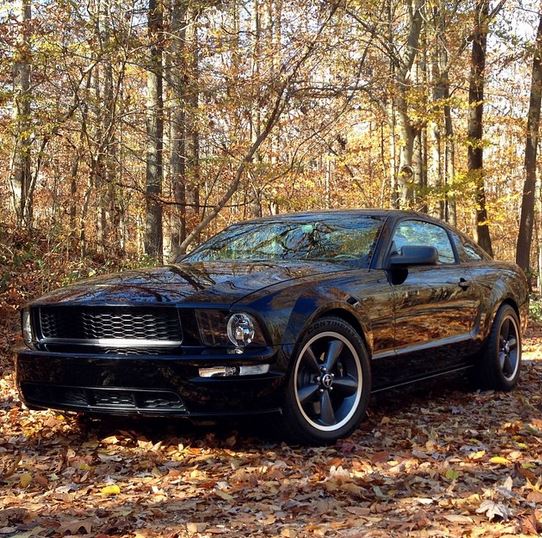

2 by cohen_cam, on Flickr

1 by cohen_cam, on Flickr

23 by cohen_cam, on Flickr

13 by cohen_cam, on Flickr

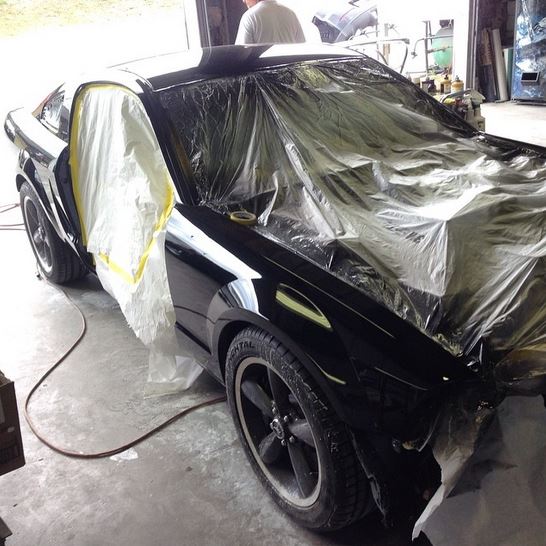

repaint by cohen_cam, on Flickr

211 by cohen_cam, on Flickr



PM me for any specific questions. If you are local in the area, I don't mind test drives as long as you are stupid serious and can put money where your mouth is.

IN ADDITION: Anyone who aids in the sale of the car, I'll send you $200 cash monies for the help.

Fun Fact: Ford only produced 181 black Bullitt Mustangs in 2009.

Last edited:

skwerl

tree hugger
Joined
Aug 6, 2011
Posts
16,197
Reaction score
1,145
Location
central Florida
If it were Highland Green then I'd be selling my '14 and coming to get it. Can't do black though.
