Looking for the wiring harness that connects to the grey C215 plug under the dash in very close proximity to the clutch pedal cruise deactivation switch.
This wiring harness connects the C215 plug to the clutch pedal cruise deactivation switch and to the clutch pedal neutral safety switch.
The part is discontinued from Ford so it has to be bought new. Part # is 7R3T 12638-AB but apparently has been superseded by part # 7R3Z-12638-AA. Both of which are discontinued.
I THINK both V8's and V6's from 2005-14 came with this harness as long as the car came with a manual. Although I have seen some pictures of some of the harnesses coming with a relay box attached. I dont know which one I need, all I what is my cruise to function.

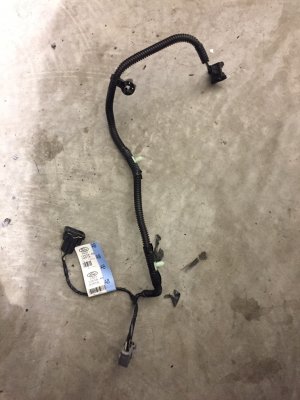

1st pic is of the harness Im looking for without the relay
2nd pic is of the harness im looking for with the relay

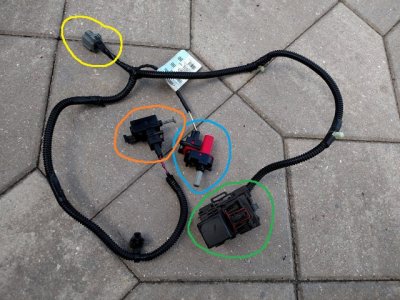

3rd pic, blue circle is the cruise deactivation switch, orange is neutral safety switch, yellow is where it connects to the C215 plug, green circle is the relay.
This wiring harness connects the C215 plug to the clutch pedal cruise deactivation switch and to the clutch pedal neutral safety switch.
The part is discontinued from Ford so it has to be bought new. Part # is 7R3T 12638-AB but apparently has been superseded by part # 7R3Z-12638-AA. Both of which are discontinued.
I THINK both V8's and V6's from 2005-14 came with this harness as long as the car came with a manual. Although I have seen some pictures of some of the harnesses coming with a relay box attached. I dont know which one I need, all I what is my cruise to function.
1st pic is of the harness Im looking for without the relay
2nd pic is of the harness im looking for with the relay
3rd pic, blue circle is the cruise deactivation switch, orange is neutral safety switch, yellow is where it connects to the C215 plug, green circle is the relay.
