Innovate MTX-L wideband won't power on

[0517suhleen]

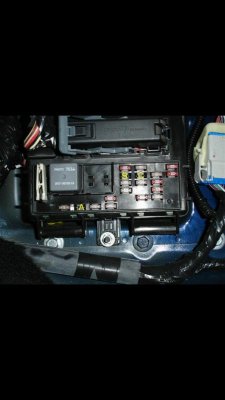

I did the search. got myself this far, and I am no PHD degree holding electrician but what's going on here? I tried all the switch on fuse slots in the SJB. I double checked all my wire to wire connections.

POWER


GROUNDS



[retfr8flyr]

I can't tell from the pic, is it connected to a switched circuit, or a power all the time circuit?



[0517suhleen]

Switched



[wabirch]

Is this coming from a 10a slot, not the empty slot in between the 5a? I think the 10a and 5a are hot all the time slots.

I'd clear any paint on ground points too.



[Wes06]

not 100% if it would be it. But the Add-a-fuses I put in, I have them facing the opposite way



[0517suhleen]

I have tried all these fuse slots, they should be switched fuses



[0517suhleen]

Figured out a bad fuse lol thanks guys



[dv8uagain]

not 100% if it would be it. But the Add-a-fuses I put in, I have them facing the opposite way

I'm happy I am not the only one that went through this situation. I had to flip mine as well. Guess it didn't make good contact.



[07 Boss]

Does it power up when you wire it up direct? If not, it's your grounds or a bad gauge.



[Jason]

Figured out a bad fuse lol thanks guys

I think he already figured it out lol



[07 Boss]

I guess reading comprehension is key.



[0517suhleen]

I guess reading comprehension is key.

Thats what I did, I connected it directly to the battery and saw it worked and just tried a different fuse and ta-dahh



[AutoXRacer]

I would only use the fuse box for a signal... The gauge should be wired with a relay and getting its 12V source directly from the battery.

Do you get an error code that flashes quickly during the heat up cycle?
