Need help adjusting my pinion angle

oldVOR

forum member
Joined
Apr 9, 2015
Posts
1,754
Reaction score
484
Location
Northern Virginia
It's not totally about the relationship to the driveshaft.
With the vehicle on a level surface, measure the angle of the transmission output shaft. Then measure the angle of the pinion. Both in relation to terra firma. With a full poly suspension, you want the pinion to be nose down in relation to the transmission by 1-1.5 degrees. This allows for axle windup and for the pinion to always be nose down or even with the transmission output shaft on hard acceleration.


Pentalab

forum member
Joined
Mar 5, 2013
Posts
5,211
Reaction score
1,093
On the 4.6 Tech site, (S197) there is a STICKY on pinion angles.


46addict

13726548
Joined
Aug 25, 2016
Posts
1,832
Reaction score
56
Location
Lawrenceville, GA
Did zero work? I know this post has been buried for a while but it's relevant to my situation. My 2piece stock DS is showing -4 at rear portion. My pinion flange is showing +4. I don't want to touch it until I figure out the math. Because I'm figuring a -4-4=-8, or 4--4=8 either way is bad. A minus minus is a positive or has common core jacked us up? Which way do I adjust UCA?

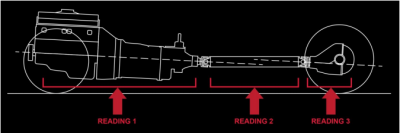

According to the Tremec driveline app and the Spicer calculator, there are three angles to take into account so taking the difference between DS angle and pinion flange angle is only part of the story.

http://spicerparts.com/calculators/driveline-operating-angle-calculator


Attachments

  • driveline angles.PNG
    driveline angles.PNG
    50.4 KB · Views: 10
