2006 mustang gt c2280a connector pinout and 14GT as well

race4food

forum member
Joined
May 31, 2009
Posts
288
Reaction score
47
Location
Baton Rouge
Tons of pictures on web and can not find a subscription to the connector diagram. Anyone?


TylerM

Member
Joined
Jun 5, 2019
Posts
112
Reaction score
14

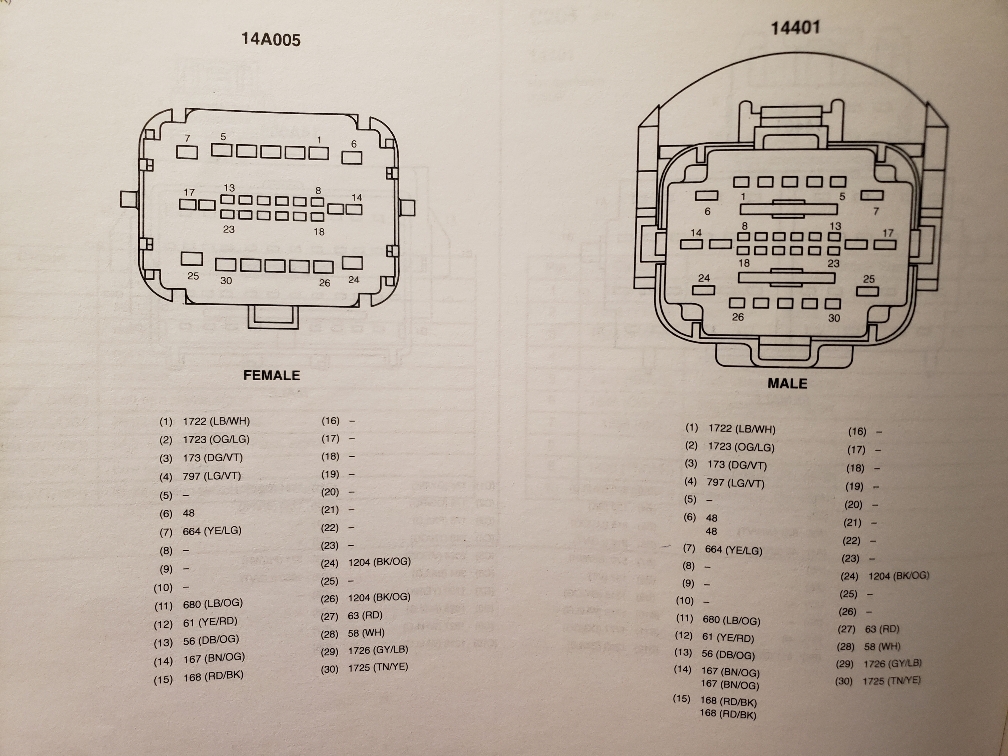

Here is this from the OEM Workshop manual for 2005 year model.

If you want to pm your email, I can email a pdf of diagram as well.


Sent from my SM-G960U using Tapatalk


race4food

forum member
Joined
May 31, 2009
Posts
288
Reaction score
47
Location
Baton Rouge

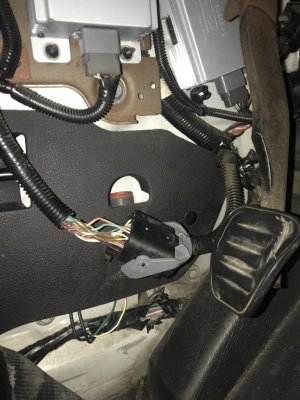

Maybe that is not the correct connector. This is the one I need the pinout for. It is from the enginebay to the inside and connects to the pedal, clutch connector.



TylerM

Member
Joined
Jun 5, 2019
Posts
112
Reaction score
14
dude!! wow thank you. Meauxcg (at) aol.com any chance you have it for a 2014 as well?
I do not. I only own the 05 hence the expensive oem manual for that car lol. Let me flip through it and see what I can find.


Sent from my SM-G960U using Tapatalk


TylerM

Member
Joined
Jun 5, 2019
Posts
112
Reaction score
14
Could you get a picture showing the wiring more clearly? Preferably all the colors and the number of wires?

Sent from my SM-G960U using Tapatalk


TylerM

Member
Joined
Jun 5, 2019
Posts
112
Reaction score
14

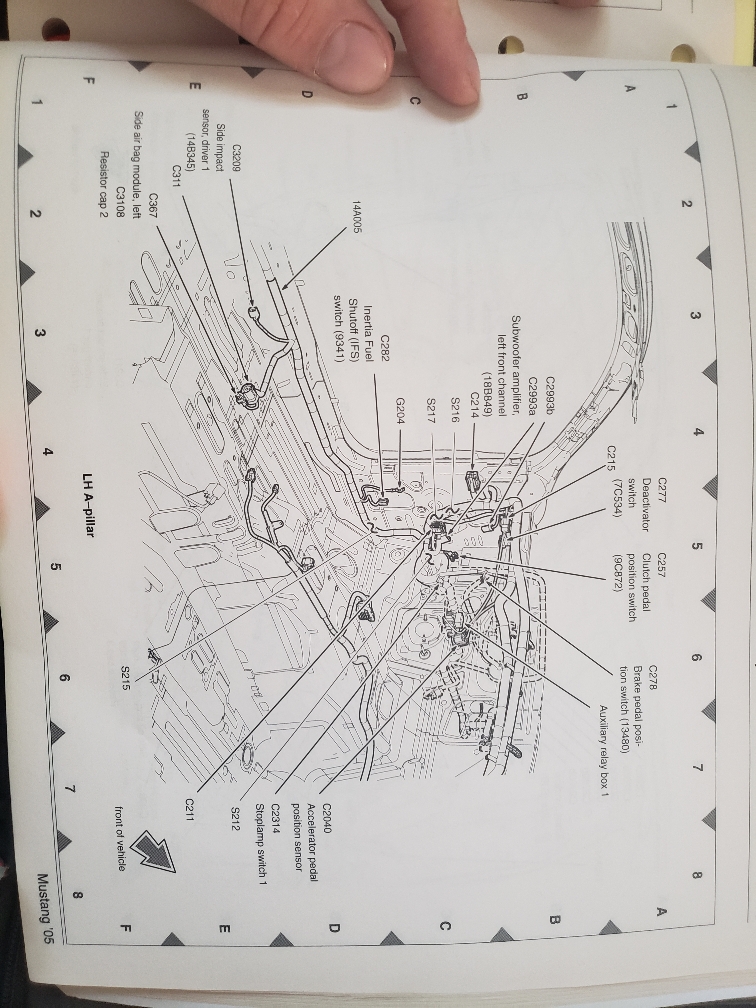

I believe this is it.


Sent from my SM-G960U using Tapatalk


race4food

forum member
Joined
May 31, 2009
Posts
288
Reaction score
47
Location
Baton Rouge
That's it thank you. What book is that from? And is there a description of what they are for? I truly appreciate you taking time to assist.


TylerM

Member
Joined
Jun 5, 2019
Posts
112
Reaction score
14
There is no description. Only that the connector is C211.

It's the OEM Workshop Wiring Diagran book. I don't mind making the effort because I know exactly how difficult to find these things on the net.

Sent from my SM-G960U using Tapatalk


TylerM

Member
Joined
Jun 5, 2019
Posts
112
Reaction score
14
Here are some pictures.


Sent from my SM-G960U using Tapatalk


race4food

forum member
Joined
May 31, 2009
Posts
288
Reaction score
47
Location
Baton Rouge
Thank you again and hate to ask again but does it have the pin out for the pins? like (1) 1722 lb/wh is for what circuit? I'm trying to get an electronic copy of that too from amazon.
