AWE New Exhaust Release for S197 11-14 GT!!

Discussion in 'AWE' started by Mhsupreme, Mar 10, 2018.

  1. Mhsupreme

    Mhsupreme Junior Member

    4
    0
    Hey guys! (SEE LINK FOR MFC LINK FOR FULL VIDEO! Cold start, revs, fly by, etc.)


    The new 11-14 S197 AWE touring Axlebacks just dropped and it is sure to end the thread for the best exhaust setup. See their product for yourself at https://www.awe-tuning.com/make/ford/mustang/awe-exhaust-ford-s197-mustang-gt


    These axle backs feature AWE's own 180 technology drone preventative feature. It is an aggressive tone without sacrificing quality. I personally chose the diamond black tips. For more detailed photos and installation information see http://mustangfanclub.com/awe-touring-axle-back-exhaust-s197-mustang/

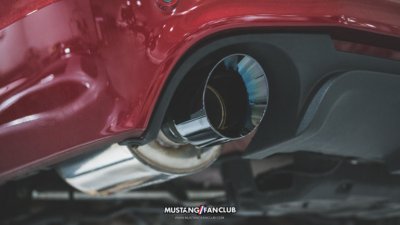

    Exhaust setup: American Racing 1 7/8 in longtubes, with matching off road X pipe, factory resonators to AWE touring axle backs:


  2. Mhsupreme

    Mhsupreme Junior Member

    4
    0
    Installation Instructions!

    1. Lubricate hangers and grommets.

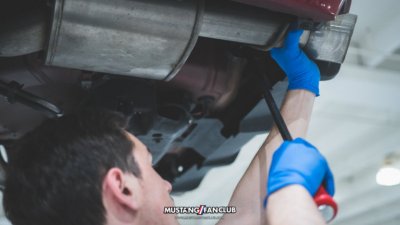

    2. Loosen over axle pipe clamps at the mid pipe.
    3. Loosen axle back clamps.
    4. Remove axle back from single hanger grommet closest to rear bumper.
    5. Slide over axle pipe at mid pipe out of clamp.







  3. Mhsupreme

    Mhsupreme Junior Member

    4
    0
    Installation Instructions! (Cont.)

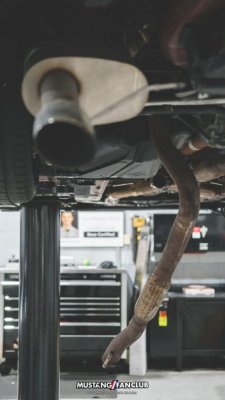

    6. Allow over axle pipes to hang on axle allowing removal of axle back exhaust.

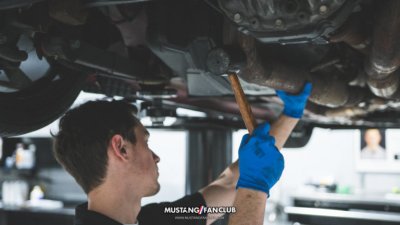

    7. Install AWE Touring Edition axle-back exhaust. Mount over the axle pipe into mid-pipe. (Use rubber mallet to secure into place if needed)

    8. Connect over the axle pipe to axle-back. Do not fully tighten clamp.

    9. Loosely install exhaust tip. Adjust your exhaust to your preference. Tighten over the axle / axle-back clamp and mid-pipe clamps after the exhaust is sitting in the perfect position.

    10. Tighten the exhaust tip clamp.

    11. IMPORTANTLY: Apply AWE decal. (Adds +5hp)







  4. Mhsupreme

    Mhsupreme Junior Member

    4
    0
    All photos taken by Jaron Cole at Mustang Fan Club.

    For exhaust clips and sound symphonies please see below!
