Finishing up a coyote swap

Discussion in '2005+ Ford Mustang v6 4.0L Tech' started by 0BlackBeauty5, Jan 8, 2021.

  1. 0BlackBeauty5

    0BlackBeauty5 Junior Member

    23
    0
    Just about finished up with a coyote swap and im stuck on some wiring problems. I am using the frpp control pack and im tryinf to figure out the wiring to the cars canbus to get the gauges to work and then the wiring for speedometer to work as well.

    Sent from my SM-G960U using Tapatalk

  2. Juice

    Juice forum member

    1,920
    497
    Can bus has a total of 4 wires. HS can +/- and MS can +/-. Match those up and the guages should work.
    You did not say what year car or which gen coyote you are swapping in. Gen 1 will work with the s197. Gen 2 however, will not.

  3. 0BlackBeauty5

    0BlackBeauty5 Junior Member

    23
    0
    Yes sorry uts a green 1 coyote with nt82 going into an 05 v6 manual so would i just run a set of humor wires from the control pack obd 2 port to the cars.

    Sent from my SM-G960U using Tapatalk

  4. fdjizm

    fdjizm Drag Queen

    19,531
    333
    Does power by the hour already make a quick swap harness for our cars?

  5. Juice

    Juice forum member

    1,920
    497
    Im not familiar with the control pack pcm. I was under the impression that the hardware was the same as any copperhead pcm. Only the flash was different, essentially turning off anything that is not needed to run the engine. (I ran the control pack strategy on a factory mustang pcm) So based on that, wiring up the can bus should be the same.
    Can you post a pinout of the control pack pcm?

    Stevejr likes this.
  6. 0BlackBeauty5

    0BlackBeauty5 Junior Member

    23
    0

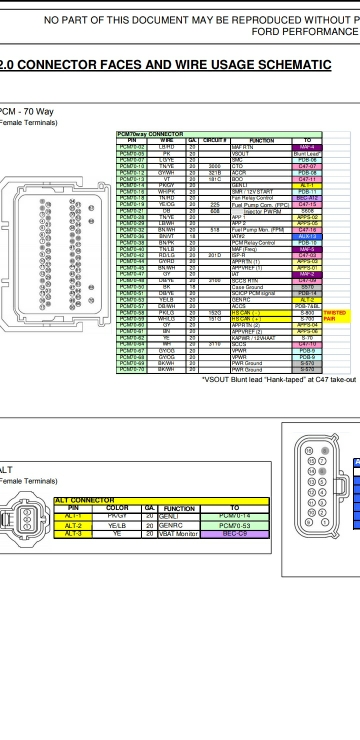

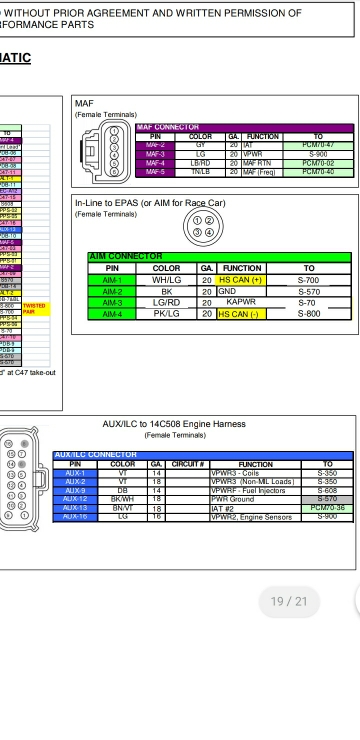

    Here is the pinout from the installation instructions.[​IMG][​IMG]

    Sent from my SM-G960U using Tapatalk

  7. Juice

    Juice forum member

    1,920
    497
    Looks like you only need the HS can. (I did my swap 4 years ago, memory fade sorry)
    You need to find the hs can wires at the old v6 pcm plug and splice them to the control pack. Makes sense as that is what carries the guages, including the speedo. the wires you are looking for are in the 50 pin v6 pcm connector, c175b. I think you can just pull them from the 50 pin connector and repin/insert them into the control pack pcm connector.
    But that makes me ask, how is the gas pedal wired to the control pac? Is there a 7 wire harness you had to feed through to the cabin?
    Best I got as I have no experience using the control pac wiring.

    Ps: I estimate I spent roughly 40 hrs over a week on just wiring mine. But I combined the 2013 engine harness and the 07 harness, repinning the pcm connectors.

    Last edited: Jan 8, 2021
  8. 0BlackBeauty5

    0BlackBeauty5 Junior Member

    23
    0
    Yes there's a clutch sensor and a apps wire on the control pack.

    Sent from my SM-G960U using Tapatalk

  9. Stevejr

    Stevejr Junior Member

    16
    5
    Yes Power by the hour makes a harness to swap it. I have one. ​

  10. fdjizm

    fdjizm Drag Queen

    19,531
    333
    nice, thanks! I stopped following a bit ago but figure by now they have it.
    special order? don't see it on the site.

  11. Stevejr

    Stevejr Junior Member

    16
    5
    It maybe still in testing. It was a super easy swap. The hardest part has been getting the clutch throw out bearing correct. My swap was done on YouTube. You can look it up foxcast media on you tube.

  12. fdjizm

    fdjizm Drag Queen

    19,531
    333
    I'll check it out, thanks!

  13. jewc75

    jewc75 forum member

    19,326
    606
    A lot of stuff they have isnt on their site. I usually send them a FB message if i need something.
