my custom front bumper

[mrt2you]

I am almost finished with my custom hybrid front bumper cover for my bullitt mustang.
I joined a GT front bumper with the foglamp area from a GT500.

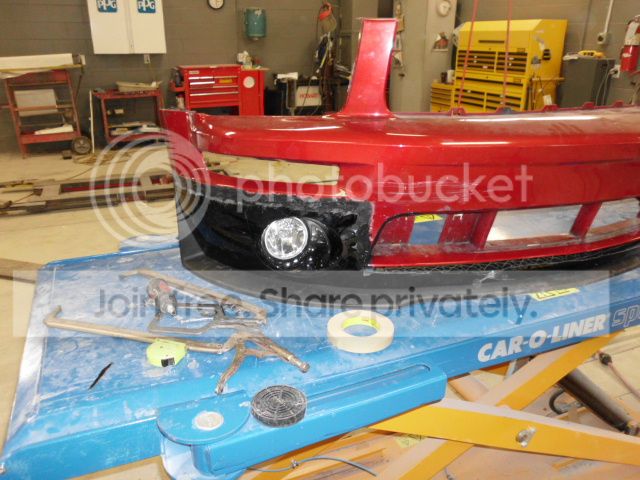

this is where I am as of today.
I just have to finish plastic welding the area below the grill. then plastic weld the back side of the welds for some extra strength, some finish body work on the welds, then prime and paint.



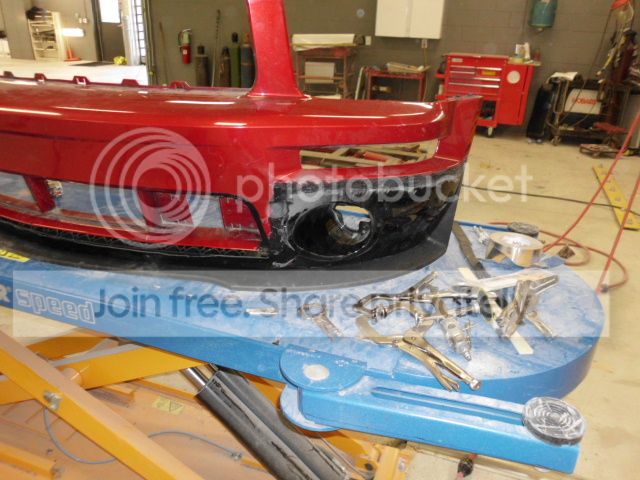

some of the tools I used on my improvised work bench, Car-O-Liner speed rack.


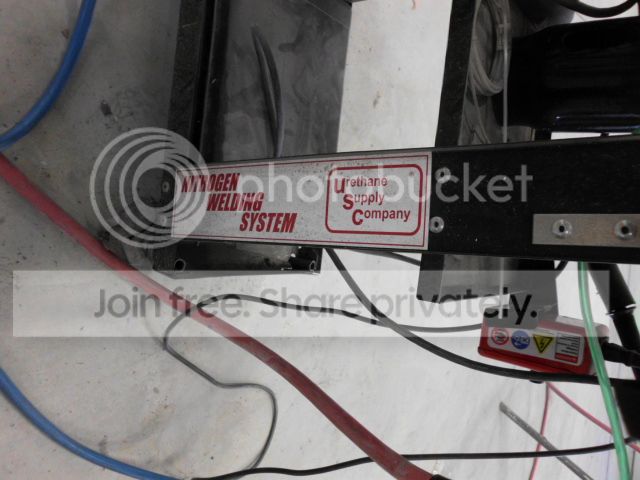

plastic bumper welder




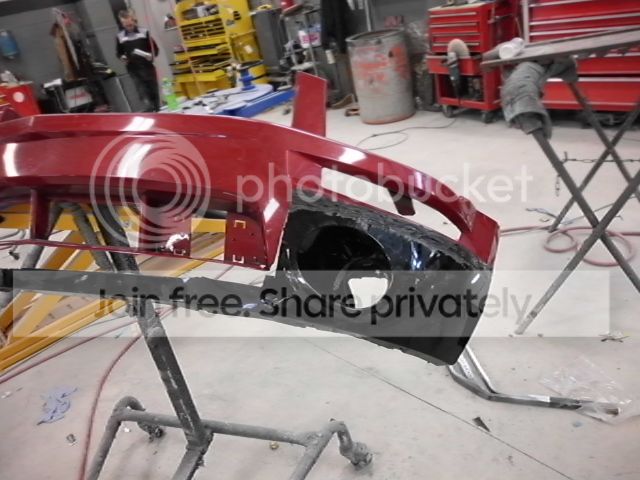

the bumper stand to hold bumper while welding.



what I started with

free damaged GT bumper,


free parts from the GT500 I resurrected last summer



[mrt2you]

I started by rough trimming the GT500 bumper 1/2's.
taped a piece of 3/4" tape to the bumper for a guide.


after trimming



I then put a piece of 3/4" tape line on the bottom of the turn signal, same place I did on the GT500 bumper, and made a rough cut. with most of the GT bumper gone I laid the GT500 bumper on the GT bumper clamped and traced it for a guide, then cut.
pic of me finish trimming the GT bumper.


here is what the GT bumper looked like after trimming.



with both bumpers trimmed I prepped the GT500 bumper to weld the 2 1/2's back together.

I started by welding the mount areas that were torn away from the GT500 crash.

I put some foil tape on a paint stick, vice gripped it to the bottom of the bumper, and filled in the torn area.

foil paint stick.


stick clamped on the bumper. ready to weld.



after welding.



now I bolted the 2 bumper 1/2's to the GT500 lower spoiler, welded some staples to the damaged center section and ready to weld the 1/2's together.






after welding




I am now ready to start attaching the 2 bumper together.



[mrt2you]

to help guide me I purchased the end supports for a GT500..
they rivet like the stock GT ones and there is a screw that goes thru the lower middle skirt hole.

getting ready to trim the GT bumper. and the support installed.



before I cut I place the cut GT500 bumper next to the uncut GT.
in this pic you can see the GT turn signal is about 3/16" lower than the trimmed GT500 bumper. the guide tape on the GT bumper will go thru the alignment screw hole if it were still on the bumper. the GT500 cover the guide tape finishes 1/8" higher than the alignment screw hole, I have to cut the GT bumper a little higher than I did the GT500 to compensate.



bumper clamped together ready to weld.
I started on the edge welding about 2". the cooled the weld, adjusted the vice gripe for a tight fit. the welded another 2".

one side after welding.



the other side after welding. you can see in these pics there is a gap between the bottom of the lower GT grill opening and the top of the lower GT500 grill opening. I will have to fill that gap with pieces of bumper I didn't use..



after welding the sides under the turn signals I put the lower spoiler back on to help align things. you can see in this pic the gap I have to fill is about 1" wide. with the spoiler installed I can now weld the vertical cuts by the grill opening. to help do this I put the bumper on my bench to weld.
one side vertical wed done. you can now get a good idea what it will look like done.



other side



whole bumper. you can easily see the gap I need to fill up.
to do that I will need to install the lower grill to help hold the bumper in alignment.



when I fill the gap up, I need to bend the filler pieces both horizontally and vertically to follow the contours of the bumper. because of this I will have to use short pieces because they are easier to bend properly.
after welding in a few pieces I got another job to do so this project will be on hold for a while.

pic on how far I have gotten. on the ends I used black fillers so they are hard to see. in the middle I will be using parts of the red bumper. same as the first pic.
