  1. Scott

    Scott Senior Member S197 Team Member

    2,332
    28
    Excellent start Kyle, looks great!

  2. LAStang1234

    LAStang1234 ----------DSL----------

    10,396
    36
    Bump!

    [​IMG]

    Sent from my SAMSUNG-SM-G890A using Tapatalk

  3. swflastang05

    swflastang05 Back for More

    2,032
    66
    [​IMG]

    Bump x2! (not nearly as clean as LA Stang but still much better than before!)

  4. LAStang1234

    LAStang1234 ----------DSL----------

    10,396
    36
    I need that Stage II setup of yours Kyle.

    Sent from my SAMSUNG-SM-G890A using Tapatalk

  5. LAStang1234

    LAStang1234 ----------DSL----------

    10,396
    36

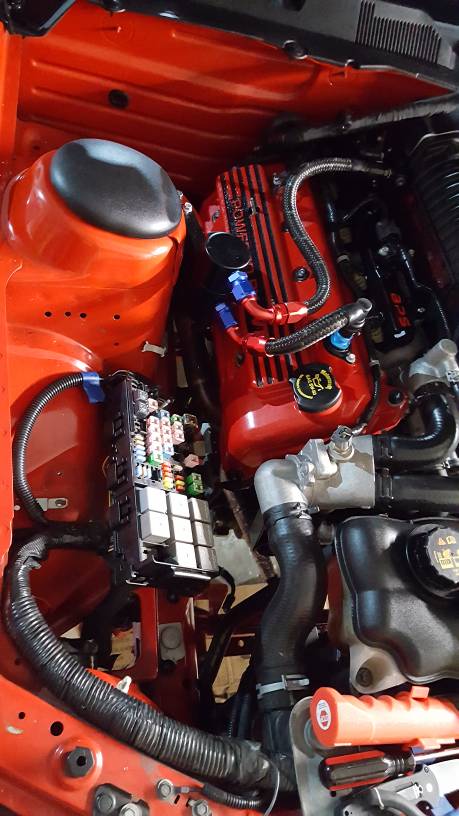

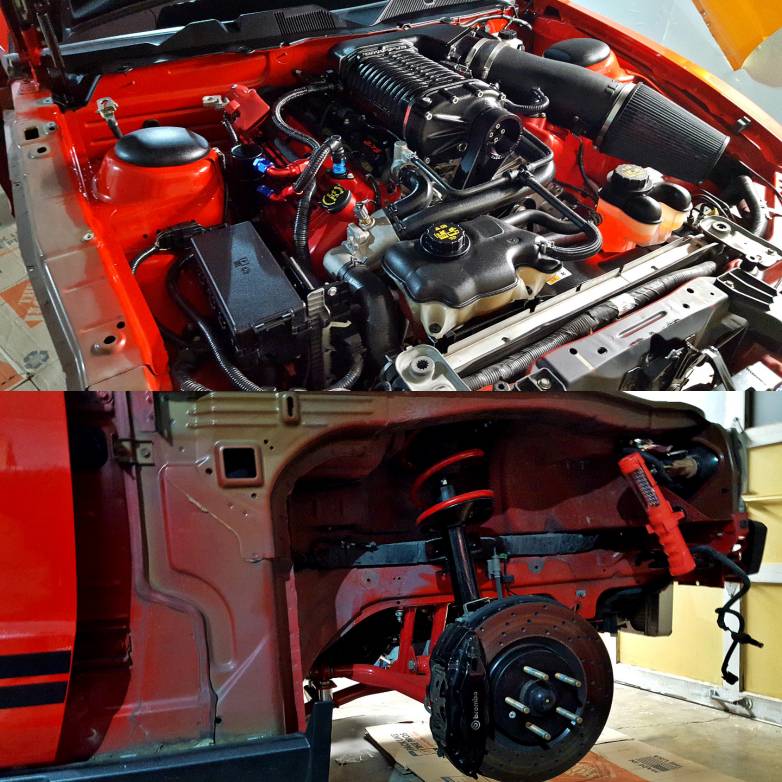

    Starting on the GT500 today. I dont think I'm going to be able to move the fuse box since it doesn't have separate wiring connections like the 05-09 GTs.

    [​IMG]
    [​IMG]

    More to come...

    Sent from my SAMSUNG-SM-G890A using Tapatalk

  6. LAStang1234

    LAStang1234 ----------DSL----------

    10,396
    36
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Sent from my SAMSUNG-SM-G890A using Tapatalk

  7. Mustang97

    Mustang97 Junior Member

    1
    0
    Hey i have a big question would a wiring harness off a 2005 4.0 work with a 2006 4.6

  8. LAStang1234

    LAStang1234 ----------DSL----------

    10,396
    36

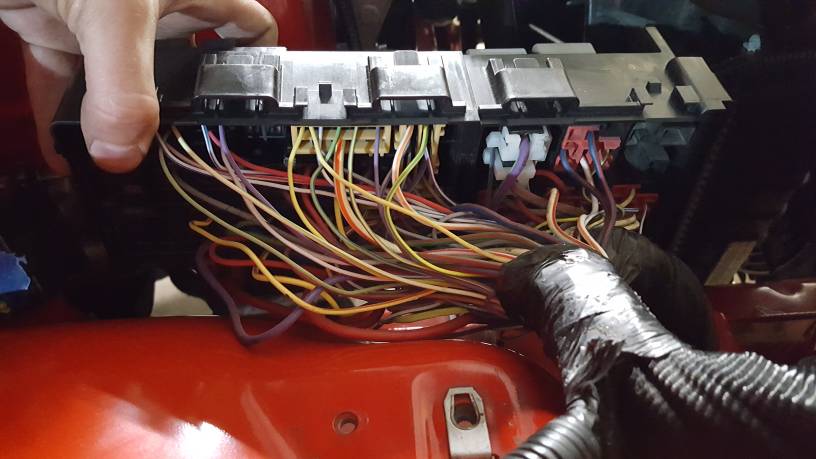

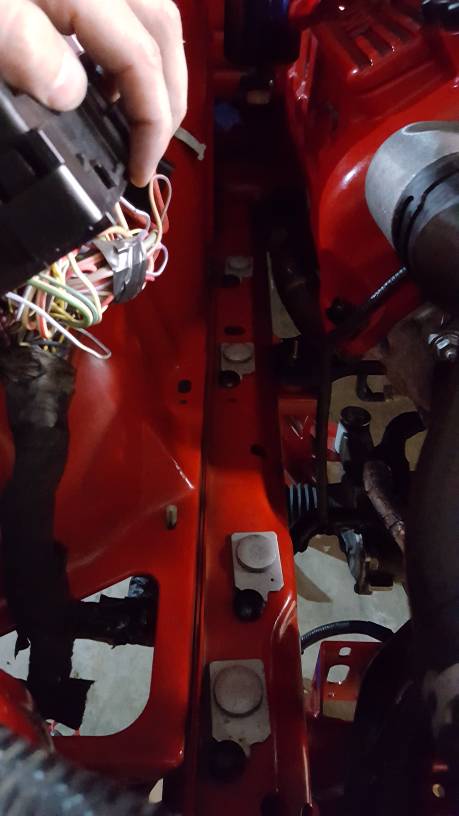

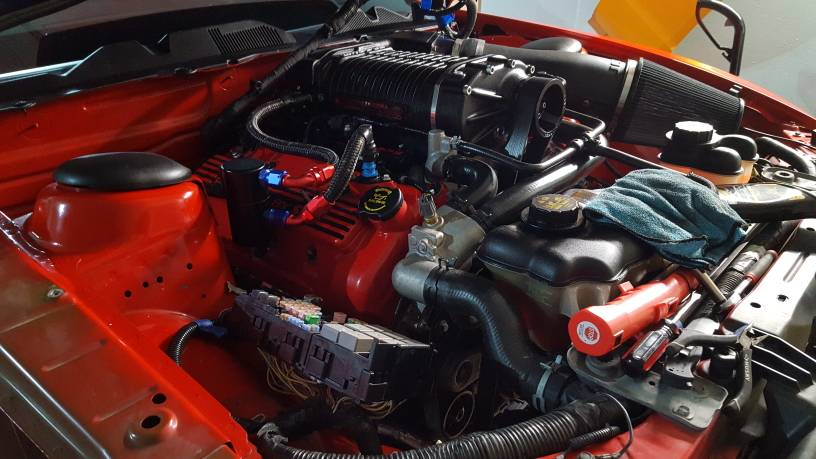

    Bump...! Sold the White Shelby before I committed to the wire tuck, but now I'm on my second Shelby and am fully committed this go around.

    Probably won't do the fuse box since it'll require just about every wire to be cut, but I'm only 2 hours in so who knows at this point lol.[​IMG][​IMG][​IMG][​IMG][​IMG][​IMG]

    Sent from my SAMSUNG-SM-G890A using Tapatalk

    Scott and 05stroker like this.
  9. Taxman

    Taxman One foot out the door

    6,652
    6
    Looking good!

  10. Scott

    Scott Senior Member S197 Team Member

    2,332
    28
    Good Luck!

  11. TylerM

    TylerM Junior Member

    30
    4
    Just had a look through this thread. I am installing a KB 2.6 on my '05 GT and have planned on doing a tuck and really cleaning up the engine bay while I am in there. I have a question. The only reasonable way that I can see to get the fuse box moved is to completely cut it out and splice it back in at the new location. Is this best practice or am I missing something?

  12. swflastang05

    swflastang05 Back for More

    2,032
    66
    Yes that sounds right, it's been a couple years since I did mine but IIRC you can unwrap and re-route one of the harnesses with just a couple extensions (injector harness?), and there's only a couple wires to extend in another (headlight harness?), but you pretty much need to extend the main harnesses to the new location.

  13. TylerM

    TylerM Junior Member

    30
    4
    Thank you. I am moving the fuse box into the cabin and ecm to the fender like so many others.

    Sent from my SM-G960U using Tapatalk

  14. swflastang05

    swflastang05 Back for More

    2,032
    66
    Good luck!

  15. TylerM

    TylerM Junior Member

    30
    4
    Thank you, I will post pictures of the end result with the blower installed.

    Sent from my SM-G960U using Tapatalk

  16. TylerM

    TylerM Junior Member

    30
    4

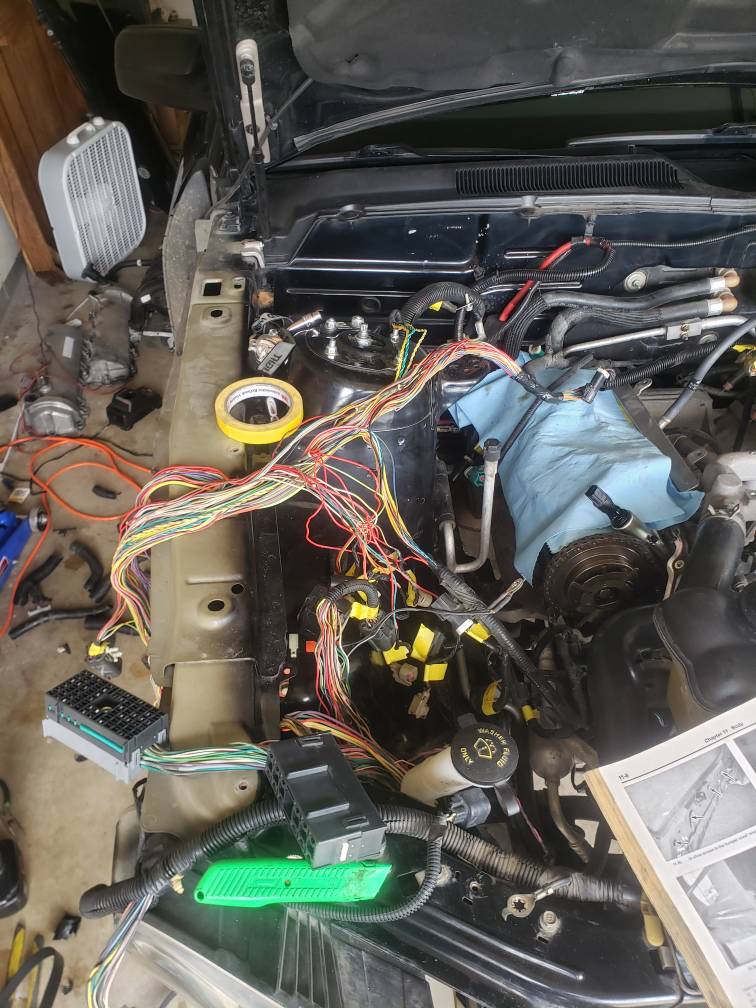

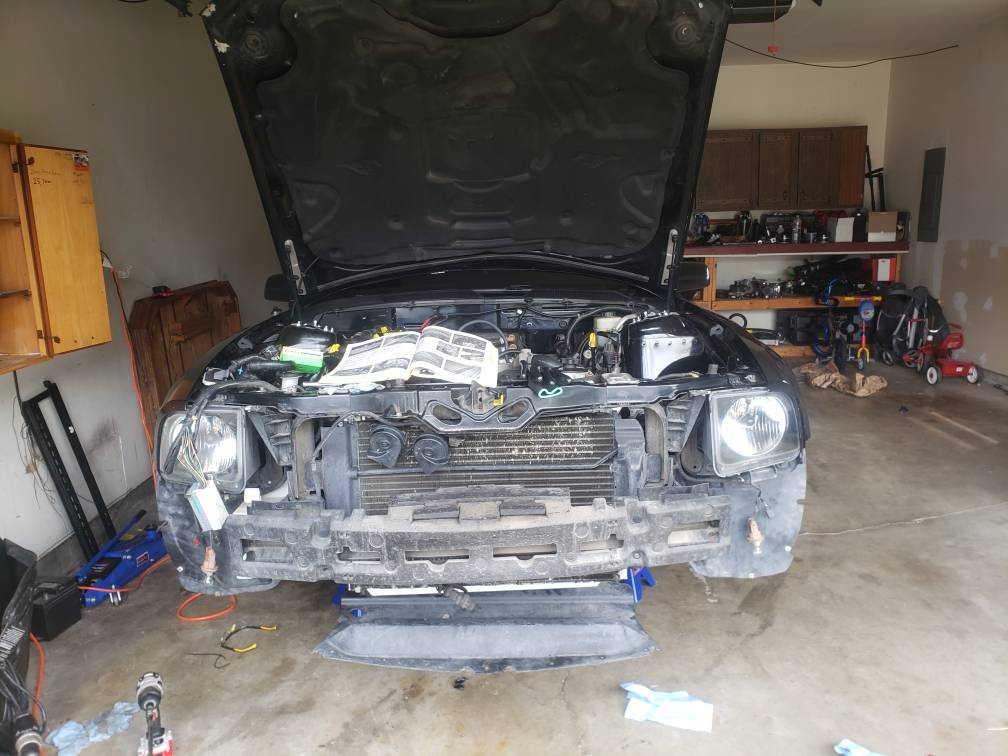

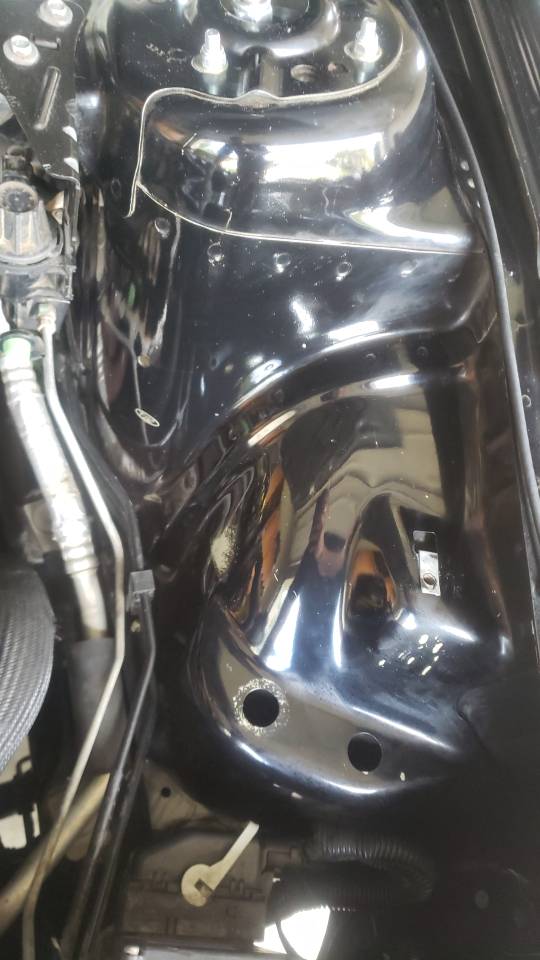

    Almost ready to solder. Got another wiring harness for free so I am looking at how to use that in this project as needed. Last picture is the product of some light compounding by hand using a Meguairs compound. Looks like I will be doing the entire bay, between the tuck and installing the KB.[​IMG][​IMG][​IMG]

    Sent from my SM-G960U using Tapatalk

    EBABlacknChrome likes this.
