06 Steering Wheel Swap With A 2012 Premium GT - Cruise Control and Audio Buttons

Discussion in 'DIY Tech Guides' started by Paulluap, Jan 1, 2018.

Car Parts
  1. Paulluap

    Paulluap forum member

    76
    10
    Hi

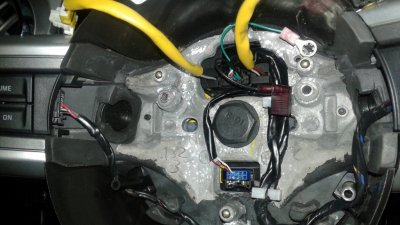

    Just a video I made showing how to connect the cruise control and audio buttons up on a 2012 steering wheel. There is a video on you tube already, but I found it hard to understand.

    Managed to make it work without buying the wpt-440 plugs.
    Maybe this might help someone else out.
    Cheers

  2. RMB427R

    RMB427R Junior Member

    16
    1
    Well done, thanks for posting up

    Paulluap likes this.
  3. buster

    buster Junior Member

    46
    1
    Great video. I wish my steering wheel was on the correct side !

  4. Wendy

    Wendy Junior Member

    5
    0
    Could this mod be done swapping in a later model clock spring so that you dont have to cut all the wires?

    or maybe just splice a few under the steering wheel???

  5. Paulluap

    Paulluap forum member

    76
    10
    Cheers Thanks, one of the reasons I brought this car was because of the conversion. :)

  6. Paulluap

    Paulluap forum member

    76
    10
    It might work, could be a bit easier. I have not seen what the newer clock spring looks like.

    Wendy likes this.
  7. Jericho

    Jericho Junior Member

    16
    0
    I got caught up on the wiring... My 2008 doesn't have the same color wires and I've been unable to find a pinning diagram. I've got hands-free and audio working like a champ, but nothing from the cruise control side of the wheel.

    Any insights?

  8. Paulluap

    Paulluap forum member

    76
    10
    Hi can you post a picture of your wires?

  9. Jericho

    Jericho Junior Member

    16
    0
    Sadly not until I go back in. If memory serves we didn't have a white wire at all.

  10. Jericho

    Jericho Junior Member

    16
    0
    Original Harness:

    [​IMG]

    New Cruise Input Wires:

    [​IMG]

    Current Splice:

    [​IMG]

    LED's function, indicating red/black-red/green success, but the other two? Nothing...

  11. Paulluap

    Paulluap forum member

    76
    10
    Maybe in the last picture, the blue/ dark-grey and the orange/ light grey need to be swapped around.

  12. Jericho

    Jericho Junior Member

    16
    0
    That was the thought, but swapping them did nothing.

  13. Paulluap

    Paulluap forum member

    76
    10
    Found this photo of the cruise control plug. But you can't' see the back wire. Could be brown or black. Have you got the green wire going to ground?

  14. datmbn

    datmbn forum member

    76
    13
    This is from an Swedish forum translated with google translate

    This summer when I was in the United States, I got a cheap steering wheel with sound buttons for a 2012 so it would be fun to
    get it and get started all the buttons.
    The steering wheel was quite tired with buttons like flag and some scratch, but after a little left "rim color" and a button representation
    https://www.amazon.com/Mustang-Steering-Wheel-Button-Repair/dp/B01LWU237A Looked great

    Physically, the wheel fits directly and you can use any center you want.
    Now over to the electrical connection:
    You will need to use the cable from the new dial but the connector from the old + that you need to use an additional 4-wire connector
    (a USB connection to computer motherboards fits)
    Start by cutting off the connectors (save earth wire + cable shoe to tilt the old connector)
    Connect now:
    (white-gray), (blue-brown), (green or black-black), (red-red).
    You now have 4 wires left, which you probably pull back to the cross and connect to a USB connector
    check so you understand better, but I think it's better to connect all 4 cables.
    Down to the stereo connectors for then, it works with Orginal stereo.
    # J1,16 or J3,4 - blue -
    # J1,17 or J3,5 - Yellow +
    # J1.18 - Green +
    # J1.19 - Purple -
    Here is a link to a pdf that investigates this very well
    https://www.google.se/url?sa=t&rct=...ustang-2.pdf&usg=AOvVaw0JYF3dyOjDYMrvs58cXh6I
    Now I have an android star so it was only to ground the two mini-leaders and connect the other two to key1 and key2 on the stereo.
    In summary, the installation was very successful, the "new" wheel is also more comfortable to hold in, slightly thicker and softer.
    regards Mats

    Last edited: Oct 5, 2018
  15. seanco

    seanco Junior Member

    9
    1
    nice post but you accidently installed the steering wheel on the wrong side of the car :)

    CGGuy09 likes this.
  16. Paulluap

    Paulluap forum member

    76
    10
    Haha
    Just spent 23 days driving route 66 on the "right" side of the road. Diffinalty a challenge. But trip was Awesome

    CGGuy09 likes this.
  17. Jose Rodriguez

    Jose Rodriguez Junior Member

    2
    0
    Paul, I have one more question, you said on the video that blue and green go together with the black, and yellow and violet are for key entry, when I looking on the wiring diagram, green are switch audio feed, violet are Audio return, yellow are switch steering wheel feed, and blue steering wheel return, so my question are, I need exactly the connection that you mention on the video or in my case I need use yellow and green as key entry and blue and violet as ground?

  18. Jose Rodriguez

    Jose Rodriguez Junior Member

    2
    0
    Paul, I have one more question, you said on the video that blue and green go together with the black, and yellow and violet are for key entry, when I looking on the wiring diagram, green are switch audio feed, violet are Audio return, yellow are switch steering wheel feed, and blue steering wheel return, so my question are, I need exactly the connection that you mention on the video or in my case I need use yellow and green as key entry and blue and violet as ground?

  19. Paulluap

    Paulluap forum member

    76
    10
    Hi You need to test what switches your wires come from on the steering wheel. As mentioned I have not seen a 2013 steering wheel wiring. cheers
