EPAS Conversion and Clean Tach Output

Discussion in '2005+ Mustang GT 4.6L Tech' started by RocketcarX, Oct 14, 2018.

  1. RocketcarX

    RocketcarX 95% of my weight is fuel

    2,583
    145
    I finally converted the ole girl to EPAS and took the time to tap the Clean Tach Output option the factory left out.
    Tackling the CTO at the same time as the EPAS makes sense if you purchase the 2012 EPAS harness Lito recommended because it includes a PCM plug you can steal a pin from for use in your original PCM harness. It is as close to OEM as you can get.

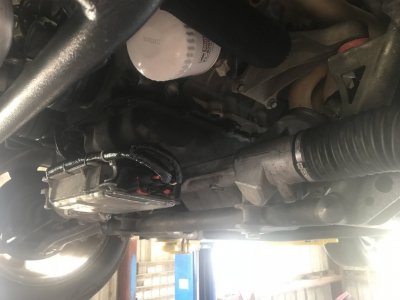

    The Clean Tach Output works perfectly, I was able to completely remove the Tach Adapter I was using to send a clean tach signal to my Quick 4 and the ProMax nitrous controller.

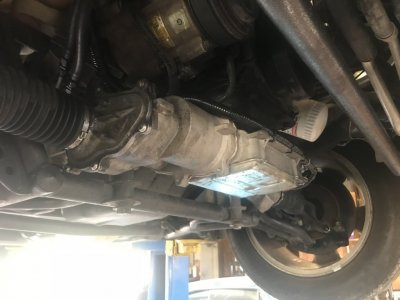

    As far as the EPAS goes it works perfectly, it is Cadillac easy in parking lots with perfect resistance on the highways. It's pretty cool how you can feel the resistance increase with speed.

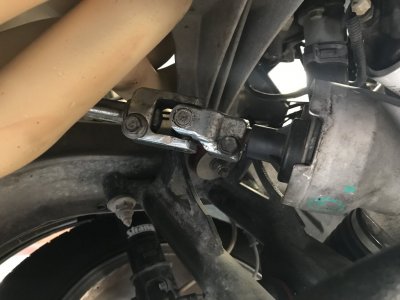

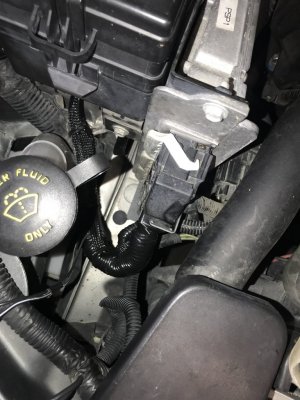

    Tapping the CAN wires was simple, I went to the PCM to keep everything under the hood, neat and clean.
    The Motorcraft wire harness provided everything needed to fully wire the EPAS.

    2012 EPAS wire harness part number:
    MOTORCRAFT WC-96240

    2014 EPAS rack:
    DR33-3D070-CD

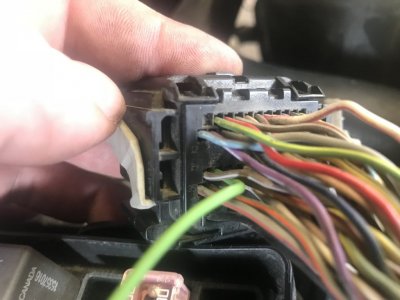

    The green wire that goes off to the left in this picture is the Clean Tach Output I added to the body harness

    IMG_9308.JPG IMG_9309.JPG IMG_9310.JPG IMG_9312.jpg



  2. 07gts197

    07gts197 forum member

    727
    26
    Lookin good man! And wow I didnt realize how big the epas rack was.

  3. EBABlacknChrome

    EBABlacknChrome forum member

    484
    129
    What are the benefits to having this vs a standard rack?

  4. 07gts197

    07gts197 forum member

    727
    26
    If doing a coyote swap you wont have to find a place for the power steering pump, alternator and ac compressor to go. Otherwise I guess it could be to declutter the engine bay, free up some (minimal) hp or the cool factor. Oh and Im sure itll help the autocross guys so they dont have to worry about the power steering fluid getting too hot.

    EBABlacknChrome likes this.
  5. RocketcarX

    RocketcarX 95% of my weight is fuel

    2,583
    145
    For me the benifit was a few things. If I ever swap in a 351 based combo or a coyote I won’t have to mess with the power steering.
    I had a manual rack in the car and it was a little easier to go to this in order to get power steering back instead of messing with another belt, fluids, and the mess of installing it.
    It frees up a good 10 horsepower or so and keeps clutter out of the bay.
    Not to mention in the future I never have to worry about the pump going out or a leak.
    The rack isn’t quite as big as it may look, but it does protrude more towards the front of the car.

    EBABlacknChrome likes this.
  6. Dino Dino Bambino

    Dino Dino Bambino I have a red car

    Age:
    55
    391
    28
    There are indeed some benefits from an EPAS conversion as mentioned above but the HP gain is the least of them. At best you'd gain 5rwhp and even less if you have underdrive pulleys.
    Decluttering the engine bay by deleting the manual PS pump, mounting bracket, lines, and reservoir is a definite plus.

  7. RocketcarX

    RocketcarX 95% of my weight is fuel

    2,583
    145
    I dunno, Lito said it was a 10hp difference for him.
    The main reason I went to EPAS was the simplicity of the system and like you said decluttering the engine bay, it’s comparable to the manual rack I was running as far as space space savings and was pretty simple to install compared to going back to the hydraulic system.

  8. Dino Dino Bambino

    Dino Dino Bambino I have a red car

    Age:
    55
    391
    28
    Is there any weight saving with the EPAS?
    Are any other parts in addition to the steering rack and wiring harness required to complete the conversion? Perhaps a shorter drive belt?
    I think this thread should be made a sticky so it can be used as a reference for anyone else contemplating retrofitting EPAS to an 05-10 Mustang.

  9. RocketcarX

    RocketcarX 95% of my weight is fuel

    2,583
    145
    Yes, you need a shorter belt, I have a part number for a shorter belt but it didn’t work for me. The belt I have on the car now is one that was laying around my shop. I need to measure it.
    No other parts are needed at all, you just wire it up and bolt it in.
    There is zero weight savings, if memory serves it adds about 3 pounds to the car, but I doubt the measures the weight of the fluid, so it may be a wash weight wise.
    I’ll go back and add some detail during the day to round out this thread. Lito made a thread with a lot of the same info I’ve provided, that’s how I learned what wire harness to order.

  10. RocketcarX

    RocketcarX 95% of my weight is fuel

    2,583
    145

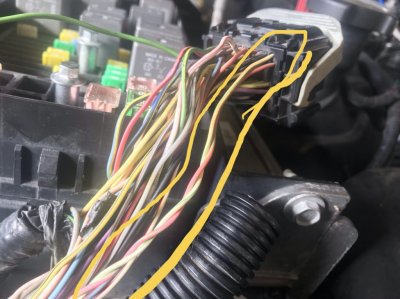

    The twisted pair in the top right corner of this plug, pins 11 and 23 are the CAN + and CAN - respectively.

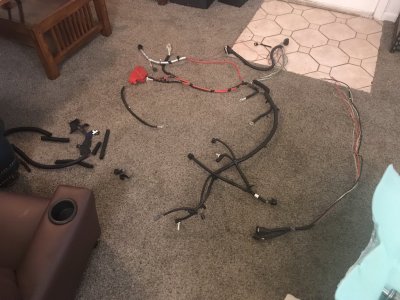

    This is how the harness looks after you separate out the 5 wires you actually need along with their plugs. What is needed is the wires off the right of the picture.

    Dino Dino Bambino likes this.
  11. RocketcarX

    RocketcarX 95% of my weight is fuel

    2,583
    145
    The PCM plug you are working with is the center plug of the three that plug into the PCM, I don't think I mentioned that

  12. hockeygod

    hockeygod forum member

    251
    19
    I am a little confused here. I have a 2010 mustang GT is it possible to swap over to epas? If so what parts don't need and where can I source them. My power steering pump just died and now would be a good time to swap I think. Are there any down sides to the swap?

  13. RocketcarX

    RocketcarX 95% of my weight is fuel

    2,583
    145
    What are you confused about? The 2010 is mechanically the same as my 08, everything you read here should apply directly.

  14. VistaBlueS197

    VistaBlueS197 forum member

    72
    0

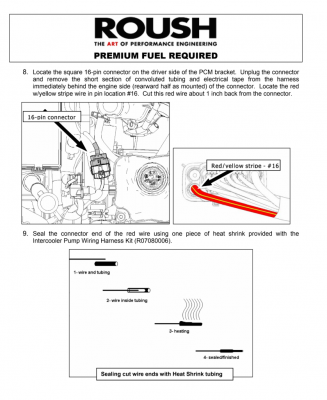

    Where did you tap into for the switch wired source?

  15. RocketcarX

    RocketcarX 95% of my weight is fuel

    2,583
    145
    I went with an add-a-circuit in the under hood fuse panel, for my car this was easiest.
